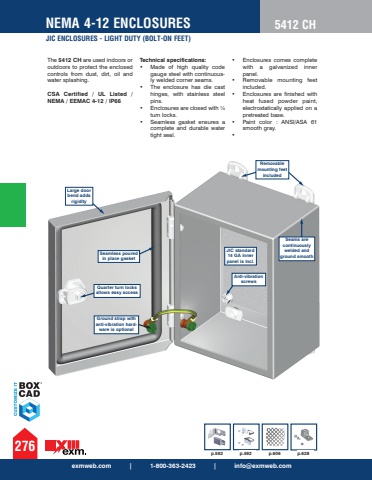

exmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESJIC ENCLOSURES - LIGHT DUTY (BOLT-ON FEET)2765412 CHThe 5412 CH are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality code gauge steel with continuously welded corner seams. %u2022 The enclosure has die cast hinges, with stainless steel pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Removable mounting feet included. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u2022JIC standard 14 GA inner panel is incl.Anti-vibration screwsSeamless poured in place gasketRemovable mounting feet includedQuarter turn locks allows easy accessLarge door bend adds rigiditySeams are continuously welded and ground smoothp.592 p.592 p.606 p.628Ground strap with anti-vibration hardware is optional
