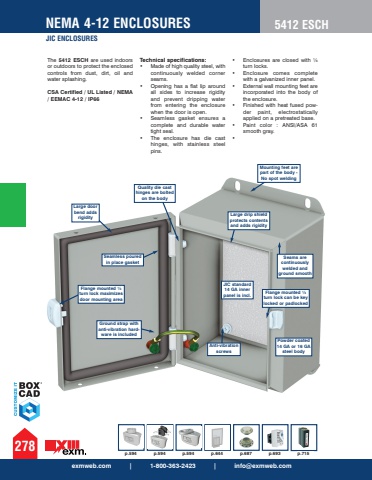

exmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESJIC ENCLOSURES2785412 ESCHThe 5412 ESCH are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel, withcontinuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelpins.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Enclosure comes completewith a galvanized inner panel.%u2022 External wall mounting feet areincorporated into the body ofthe enclosure.%u2022 Finished with heat fused powder paint, electrostaticallyapplied on a pretreated base.%u2022 Paint color : ANSI/ASA 61smooth gray.%u2022Powder coated 14 GA or 16 GA steel bodyJIC standard 14 GA inner panel is incl.Anti-vibration screwsSeamless poured in place gasketMounting feet are part of the body - No spot weldingGround strap with anti-vibration hardware is includedFlange mounted %u00bc turn lock maximizes door mounting areaFlange mounted %u00bc turn lock can be key locked or padlockedLarge drip shield protects contents and adds rigidityQuality die cast hinges are bolted on the bodyLarge door bend adds rigiditySeams are continuously welded and ground smoothp.594 p.594 p.594 p.644 p.687 p.693 p.715
