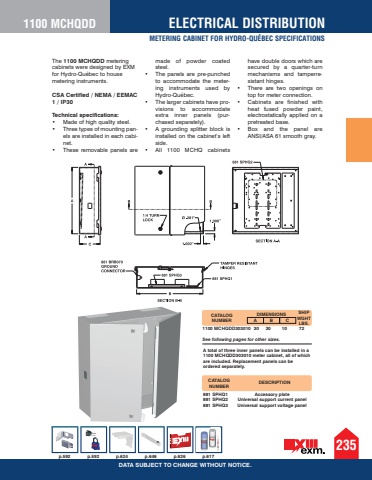

p.592 p.592 p.624 p.646 p.626 p.617235DATA SUBJECT TO CHANGE WITHOUT NOTICE.ELECTRICAL DISTRIBUTIONMETERING CABINET FOR HYDRO-QU%u00c9BEC SPECIFICATIONS1100 MCHQDDThe 1100 MCHQDD metering cabinets were designed by EXM for Hydro-Qu%u00e9bec to house metering instruments. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Three types of mounting panels are installed in each cabinet. %u2022 These removable panels are made of powder coated steel. %u2022 The panels are pre-punched to accommodate the metering instruments used by Hydro-Qu%u00e9bec. %u2022 The larger cabinets have provisions to accommodate extra inner panels (purchased separately). %u2022 A grounding splitter block is installed on the cabinet%u2019s left side. %u2022 All 1100 MCHQ cabinets have double doors which are secured by a quarter-turn mechanisms and tamperresistant hinges. %u2022 There are two openings on top for meter connection. %u2022 Cabinets are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box and the panel are ANSI/ASA 61 smooth gray.%u201d%u201d%u201d1100 MCHQDD303010 30 30 10 72 See following pages for other sizes.CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.881 SPHQ1 Accessory plate 881 SPHQ2 Universal support current panel 881 SPHQ3 Universal support voltage panel CATALOG NUMBER DESCRIPTIONA total of three inner panels can be installed in a 1100 MCHQDD303010 meter cabinet, all of which are included. Replacement panels can be ordered separately.
