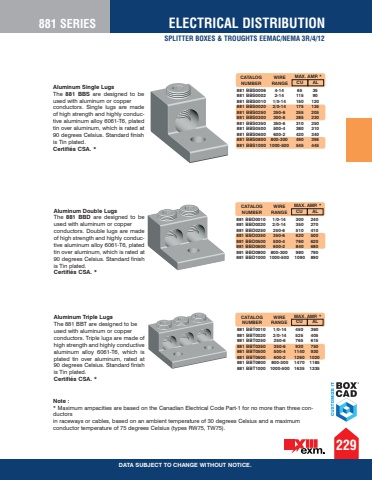

229DATA SUBJECT TO CHANGE WITHOUT NOTICE.881 SERIES ELECTRICAL DISTRIBUTIONSPLITTER BOXES & TROUGHTS EEMAC/NEMA 3R/4/12Aluminum Single Lugs The 881 BBS are designed to be used with aluminum or copper conductors. Single lugs are made of high strength and highly conductive aluminum alloy 6061-T6, plated tin over aluminum, which is rated at 90 degrees Celsius. Standard finish is Tin plated. Certifi%u00e9s CSA. *Aluminum Double Lugs The 881 BBD are designed to be used with aluminum or copper conductors. Double lugs are made of high strength and highly conductive aluminum alloy 6061-T6, plated tin over aluminum, which is rated at 90 degrees Celsius. Standard finish is Tin plated. Certifi%u00e9s CSA. *Aluminum Triple Lugs The 881 BBT are designed to be used with aluminum or copper conductors. Triple lugs are made of high strength and highly conductive aluminum alloy 6061-T6, which is plated tin over aluminum, rated at 90 degrees Celsius. Standard finish is Tin plated. Certifi%u00e9s CSA. *CATALOG NUMBERWIRE RANGE CU ALMAX. AMP. *881 BBS0006 4-14 65 35 881 BBS0002 2-14 115 90 881 BBS0010 1/0-14 150 120 881 BBS0020 2/0-14 175 135 881 BBS0250 250-6 255 205 881 BBS0300 300-6 285 230 881 BBS0350 350-6 310 250 881 BBS0500 500-4 380 310 881 BBS0600 600-2 420 340 881 BBS0800 800-300 490 395 881 BBS1000 1000-500 545 445 WIRE MAX. AMP. *RANGECATALOG NUMBER CU AL881 BBD0010 1/0-14 300 240 881 BBD0020 2/0-14 350 270 881 BBD0250 250-6 510 410 881 BBD0350 350-6 620 500 881 BBD0500 500-4 760 620 881 BBD0600 600-2 840 680 881 BBD0800 800-300 980 790 881 BBD1000 1000-500 1090 890CATALOG NUMBERWIRE RANGE CU ALMAX. AMP. *881 BBT0010 1/0-14 450 360 881 BBT0020 2/0-14 525 405 881 BBT0250 250-6 765 615 881 BBT0350 350-6 930 750 881 BBT0500 500-4 1140 930 881 BBT0600 600-2 1260 1020 881 BBT0800 800-300 1470 1185 881 BBT1000 1000-500 1635 1335 Note :* Maximum ampacities are based on the Canadian Electrical Code Part-1 for no more than three conductors in raceways or cables, based on an ambient temperature of 30 degrees Celsius and a maximum conductor temperature of 75 degrees Celsius (types RW75, TW75).
