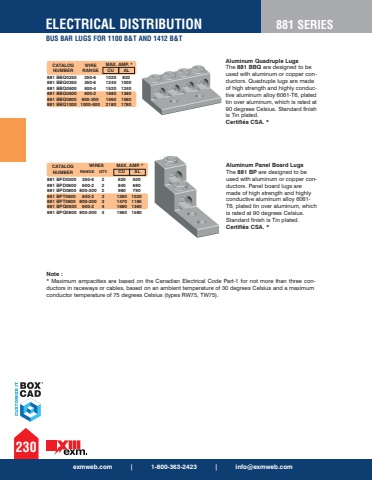

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 881 SERIESBUS BAR LUGS FOR 1100 B&T AND 1412 B&TAluminum Quadruple Lugs The 881 BBQ are designed to be used with aluminum or copper conductors. Quadruple lugs are made of high strength and highly conductive aluminum alloy 6061-T6, plated tin over aluminum, which is rated at 90 degrees Celsius. Standard finish is Tin plated. Certifi%u00e9s CSA. *Aluminum Panel Board Lugs The 881 BP are designed to be used with aluminum or copper conductors. Panel board lugs are made of high strength and highly conductive aluminum alloy 6061- T6, plated tin over aluminum, which is rated at 90 degrees Celsius. Standard finish is Tin plated. Certifi%u00e9s CSA. *Note : * Maximum ampacities are based on the Canadian Electrical Code Part-1 for not more than three conductors in raceways or cables, based on an ambient temperature of 30 degrees Celsius and a maximum conductor temperature of 75 degrees Celsius (types RW75, TW75).CATALOG NUMBERWIRE RANGE CU ALMAX. AMP. *881 BBQ0250 250-6 1020 820 881 BBQ0350 350-6 1240 1000 881 BBQ0500 500-4 1520 1240 881 BBQ0600 600-2 1680 1360 881 BBQ0800 800-300 1960 1580 881 BBQ1000 1000-500 2180 1780CATALOG NUMBERWIRESCU ALMAX. AMP. *RANGE QTY.881 BPD0300 350-6 2 620 500 881 BPD0600 600-2 2 840 680881 BPD0800 800-300 2 980 790 881 BPT0600 600-2 3 1260 1020881 BPT0800 800-300 3 1470 1185 881 BPQ0600 600-2 4 1680 1360881 BPQ0800 800-300 4 1960 1580
