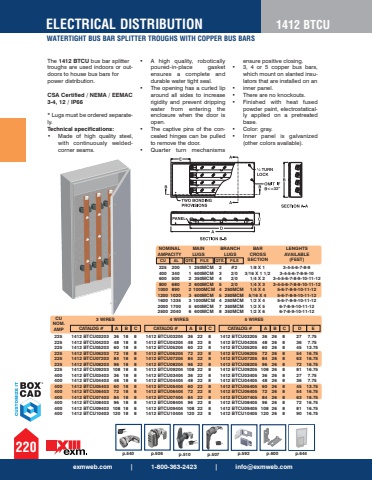

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 1412 BTCUWATERTIGHT BUS BAR SPLITTER TROUGHS WITH COPPER BUS BARS<=32%u201dThe 1412 BTCU bus bar splitter troughs are used indoors or outdoors to house bus bars for power distribution. CSA Certified / NEMA / EEMAC 3-4, 12 / IP66 * Lugs must be ordered separately.Technical specifications:%u2022 Made of high quality steel, with continuously weldedcorner seams. %u2022 A high quality, robotically poured-in-place gasket ensures a complete and durable water tight seal. %u2022 The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 The captive pins of the concealed hinges can be pulled to remove the door. %u2022 Quarter turn mechanisms ensure positive closing. %u2022 3, 4 or 5 copper bus bars, which mount on slanted insulators that are installed on an %u2022 inner panel. %u2022 There are no knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Color: gray. %u2022 Inner panel is galvanized (other colors available).NOMINAL AMPACITYCU AL QT%u00c9. FILSMAIN LUGSBRANCH LUGSBAR CROSS SECTIONLENGHTS AVAILABLE QT%u00c9. FILS (FEET)225 200 1 250MCM 2 #2 1/8 X 1 3-4-5-6-7-8-9 400 340 1 600MCM 3 2/0 3/16 X 1 1/2 3-4-5-6-7-8-9-10 600 500 2 350MCM 4 2/0 1/4 X 2 3-4-5-6-7-8-9-10-11-12 800 680 2 600MCM 5 2/0 1/4 X 3 3-4-5-6-7-8-9-10-11-12 1000 890 2 1000MCM 4 250MCM 1/4 X 4 5-6-7-8-9-10-11-12 1200 1020 3 600MCM 5 250MCM 5/16 X 4 5-6-7-8-9-10-11-12 1600 1335 3 1000MCM 4 250MCM 1/2 X 4 5-6-7-8-9-10-11-12 2000 1700 5 600MCM 7 350MCM 1/2 X 5 6-7-8-9-10-11-12 2500 2040 6 600MCM 8 350MCM 1/2 X 6 6-7-8-9-10-11-12CATALOG # A B CCU NOM. AMP D E3 WIRES 4 WIRES 5 WIRESCATALOG # A B C CATALOG # A B C225 1412 BTCU03203 36 18 8 1412 BTCU03204 36 22 8 1412 BTCU03205 36 26 8 27 7.75 225 1412 BTCU04203 48 18 8 1412 BTCU04204 48 22 8 1412 BTCU04205 48 26 8 36 7.75 225 1412 BTCU05203 60 18 8 1412 BTCU05204 60 22 8 1412 BTCU05205 60 26 8 45 13.75 225 1412 BTCU06203 72 18 8 1412 BTCU06204 72 22 8 1412 BTCU06205 72 26 8 54 16.75 225 1412 BTCU07203 84 18 8 1412 BTCU07204 84 22 8 1412 BTCU07205 84 26 8 63 16.75 225 1412 BTCU08203 96 18 8 1412 BTCU08204 96 22 8 1412 BTCU08205 96 26 8 72 16.75 225 1412 BTCU09203 108 18 8 1412 BTCU09204 108 22 8 1412 BTCU09205 108 26 8 81 16.75 400 1412 BTCU03403 36 18 8 1412 BTCU03404 36 22 8 1412 BTCU03405 36 26 8 27 7.75 400 1412 BTCU04403 48 18 8 1412 BTCU04404 48 22 8 1412 BTCU04405 48 26 8 36 7.75 400 1412 BTCU05403 60 18 8 1412 BTCU05404 60 22 8 1412 BTCU05405 60 26 8 45 13.75 400 1412 BTCU06403 72 18 8 1412 BTCU06404 72 22 8 1412 BTCU06405 72 26 8 54 16.75 400 1412 BTCU07403 84 18 8 1412 BTCU07404 84 22 8 1412 BTCU07405 84 26 8 63 16.75 400 1412 BTCU08403 96 18 8 1412 BTCU08404 96 22 8 1412 BTCU08405 96 26 8 72 16.75 400 1412 BTCU09403 108 18 8 1412 BTCU09404 108 22 8 1412 BTCU09405 108 26 8 81 16.75 400 1412 BTCU10403 120 18 8 1412 BTCU10404 120 22 8 1412 BTCU10405 120 26 8 90 16.75p.540 p.506 p.510 p.507 p.592 p.600 p.644
