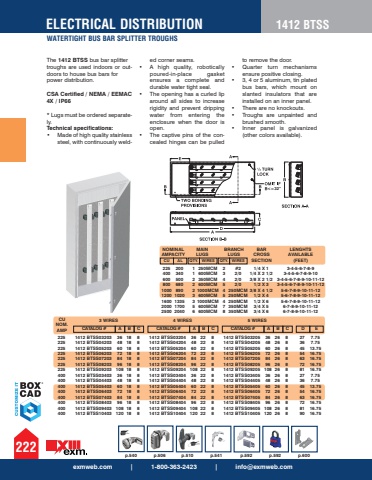

p.592 p.592 p.600222exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 1412 BTSSWATERTIGHT BUS BAR SPLITTER TROUGHSThe 1412 BTSS bus bar splitter troughs are used indoors or outdoors to house bus bars for power distribution. CSA Certified / NEMA / EEMAC 4X / IP66 * Lugs must be ordered separately.Technical specifications:%u2022 Made of high quality stainless steel, with continuously welded corner seams. %u2022 A high quality, robotically poured-in-place gasket ensures a complete and durable water tight seal. %u2022 The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 The captive pins of the concealed hinges can be pulled to remove the door. %u2022 Quarter turn mechanisms ensure positive closing. %u2022 3, 4 or 5 aluminum, tin plated bus bars, which mount on slanted insulators that are installed on an inner panel. %u2022 There are no knockouts. %u2022 Troughs are unpainted and brushed smooth. %u2022 Inner panel is galvanized (other colors available).<=32%u201dNOMINAL AMPACITYCU AL QTY. WIRESMAIN LUGSBRANCH LUGSBAR CROSS SECTIONLENGHTS AVAILABLE QTY. WIRES (FEET)225 200 1 250MCM 2 #2 1/4 X 1 3-4-5-6-7-8-9 400 340 1 600MCM 3 2/0 1/4 X 2 1/2 3-4-5-6-7-8-9-10 600 500 2 350MCM 4 2/0 3/8 X 2 1/2 3-4-5-6-7-8-9-10-11-12 800 680 2 600MCM 5 2/0 1/2 X 3 3-4-5-6-7-8-9-10-11-12 1000 890 2 1000MCM 4 250MCM 3/8 X 4 1/2 5-6-7-8-9-10-11-12 1200 1020 3 600MCM 5 250MCM 1/2 X 4 5-6-7-8-9-10-11-12 1600 1335 3 1000MCM 4 250MCM 1/2 X 6 5-6-7-8-9-10-11-12 2000 1700 5 600MCM 7 350MCM 3/4 X 5 6-7-8-9-10-11-12 2500 2040 6 600MCM 8 350MCM 3/4 X 6 6-7-8-9-10-11-12CATALOG # A B CCU NOM. AMP D E3 WIRES 4 WIRES 5 WIRESCATALOG # A B C CATALOG # A B C225 1412 BTSS03203 36 18 8 1412 BTSS03204 36 22 8 1412 BTSS03205 36 26 8 27 7.75 225 1412 BTSS04203 48 18 8 1412 BTSS04204 48 22 8 1412 BTSS04205 48 26 8 36 7.75 225 1412 BTSS05203 60 18 8 1412 BTSS05204 60 22 8 1412 BTSS05205 60 26 8 45 13.75 225 1412 BTSS06203 72 18 8 1412 BTSS06204 72 22 8 1412 BTSS06205 72 26 8 54 16.75 225 1412 BTSS07203 84 18 8 1412 BTSS07204 84 22 8 1412 BTSS07205 84 26 8 63 16.75 225 1412 BTSS08203 96 18 8 1412 BTSS08204 96 22 8 1412 BTSS08205 96 26 8 72 16.75 225 1412 BTSS09203 108 18 8 1412 BTSS09204 108 22 8 1412 BTSS09205 108 26 8 81 16.75 400 1412 BTSS03403 36 18 8 1412 BTSS03404 36 22 8 1412 BTSS03405 36 26 8 27 7.75 400 1412 BTSS04403 48 18 8 1412 BTSS04404 48 22 8 1412 BTSS04405 48 26 8 36 7.75 400 1412 BTSS05403 60 18 8 1412 BTSS05404 60 22 8 1412 BTSS05405 60 26 8 45 13.75 400 1412 BTSS06403 72 18 8 1412 BTSS06404 72 22 8 1412 BTSS06405 72 26 8 54 16.75 400 1412 BTSS07403 84 18 8 1412 BTSS07404 84 22 8 1412 BTSS07405 84 26 8 63 16.75 400 1412 BTSS08403 96 18 8 1412 BTSS08404 96 22 8 1412 BTSS08405 96 26 8 72 16.75 400 1412 BTSS09403 108 18 8 1412 BTSS09404 108 22 8 1412 BTSS09405 108 26 8 81 16.75 400 1412 BTSS10403 120 18 8 1412 BTSS10404 120 22 8 1412 BTSS10405 120 26 8 90 16.75 p.540 p.506 p.510 p.541
