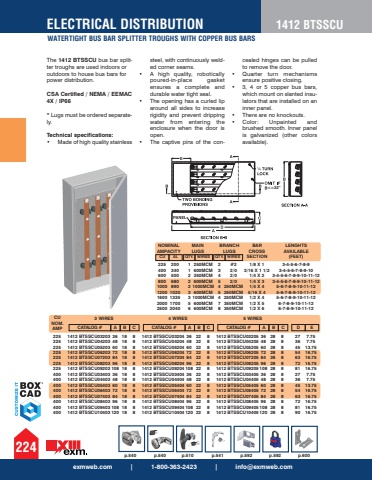

p.541 p.592 p.592 p.600exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 1412 BTSSCUWATERTIGHT BUS BAR SPLITTER TROUGHS WITH COPPER BUS BARSThe 1412 BTSSCU bus bar splitter troughs are used indoors or outdoors to house bus bars for power distribution. CSA Certified / NEMA / EEMAC 4X / IP66 * Lugs must be ordered separately.Technical specifications:%u2022 Made of high quality stainlesssteel, with continuously welded corner seams. %u2022 A high quality, roboticallypoured-in-place gasket ensures a complete and durable water tight seal. %u2022 The opening has a curled liparound all sides to increaserigidity and prevent drippingwater from entering theenclosure when the door isopen.%u2022 The captive pins of the concealed hinges can be pulled to remove the door. %u2022 Quarter turn mechanismsensure positive closing. %u2022 3, 4 or 5 copper bus bars,which mount on slanted insulators that are installed on aninner panel.%u2022 There are no knockouts.%u2022 Color: Unpainted andbrushed smooth. Inner panelis galvanized (other colorsavailable).<=32%u201dNOMINAL AMPACITYCU AL QTY. WIRESMAIN LUGSBRANCH LUGSBAR CROSS SECTIONLENGHTS AVAILABLE QTY. WIRES (FEET)225 200 1 250MCM 2 #2 1/8 X 1 3-4-5-6-7-8-9400 340 1 600MCM 3 2/0 3/16 X 1 1/2 3-4-5-6-7-8-9-10600 500 2 350MCM 4 2/0 1/4 X 2 3-4-5-6-7-8-9-10-11-12800 680 2 600MCM 5 2/0 1/4 X 3 3-4-5-6-7-8-9-10-11-121000 890 2 1000MCM 4 250MCM 1/4 X 4 5-6-7-8-9-10-11-121200 1020 3 600MCM 5 250MCM 5/16 X 4 5-6-7-8-9-10-11-121600 1335 3 1000MCM 4 250MCM 1/2 X 4 5-6-7-8-9-10-11-122000 1700 5 600MCM 7 350MCM 1/2 X 5 6-7-8-9-10-11-122500 2040 6 600MCM 8 350MCM 1/2 X 6 6-7-8-9-10-11-12CATALOG # A B CCU NOM. AMP D E3 WIRES 4 WIRES 5 WIRESCATALOG # A B C CATALOG # A B C225 1412 BTSSCU03203 36 18 8 1412 BTSSCU03204 36 22 8 1412 BTSSCU03205 36 28 8 27 7.75 225 1412 BTSSCU04203 48 18 8 1412 BTSSCU04204 48 22 8 1412 BTSSCU04205 48 28 8 36 7.75 225 1412 BTSSCU05203 60 18 8 1412 BTSSCU05204 60 22 8 1412 BTSSCU05205 60 28 8 45 13.75 225 1412 BTSSCU06203 72 18 8 1412 BTSSCU06204 72 22 8 1412 BTSSCU06205 72 28 8 54 16.75 225 1412 BTSSCU07203 84 18 8 1412 BTSSCU07204 84 22 8 1412 BTSSCU07205 84 28 8 63 16.75 225 1412 BTSSCU08203 96 18 8 1412 BTSSCU08204 96 22 8 1412 BTSSCU08205 96 28 8 72 16.75 225 1412 BTSSCU09203 108 18 8 1412 BTSSCU09204 108 22 8 1412 BTSSCU09205 108 28 8 81 16.75 400 1412 BTSSCU03403 36 18 8 1412 BTSSCU03404 36 22 8 1412 BTSSCU03405 36 28 8 27 7.75 400 1412 BTSSCU04403 48 18 8 1412 BTSSCU04404 48 22 8 1412 BTSSCU04405 48 28 8 36 7.75 400 1412 BTSSCU05403 60 18 8 1412 BTSSCU05404 60 22 8 1412 BTSSCU05405 60 28 8 45 13.75 400 1412 BTSSCU06403 72 18 8 1412 BTSSCU06404 72 22 8 1412 BTSSCU06405 72 28 8 54 16.75 400 1412 BTSSCU07403 84 18 8 1412 BTSSCU07404 84 22 8 1412 BTSSCU07405 84 28 8 63 16.75 400 1412 BTSSCU08403 96 18 8 1412 BTSSCU08404 96 22 8 1412 BTSSCU08405 96 28 8 72 16.75 400 1412 BTSSCU09403 108 18 8 1412 BTSSCU09404 108 22 8 1412 BTSSCU09405 108 28 8 81 16.75 400 1412 BTSSCU10403 120 18 8 1412 BTSSCU10404 120 22 8 1412 BTSSCU10405 120 28 8 90 16.75p.540 p.540 p.510
