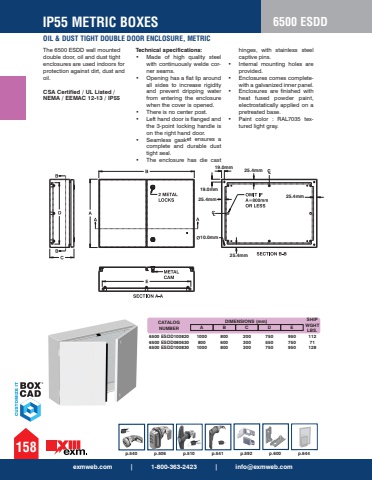

exmweb.com | 1-800-363-2423 | [email protected] 25.4mm10.0mmOIL & DUST TIGHT DOUBLE DOOR ENCLOSURE, METRICIP55 METRIC BOXES 6500 ESDDThe 6500 ESDD wall mounted double door, oil and dust tight enclosures are used indoors for protection against dirt, dust and oil. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55 Technical specifications: %u2022 Made of high quality steel with continuously welde corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 There is no center post. %u2022 Left hand door is flanged and the 3-point locking handle is on the right hand door. %u2022 Seamless gasket ensures a complete and durable dust tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Internal mounting holes are provided. %u2022 Enclosures comes completewith a galvanized inner panel. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light gray.CATALOG NUMBER A B C D EDIMENSIONS (mm) SHIP WGHT LBS.6500 ESDD100820 1000 800 200 750 950 112 6500 ESDD080630 800 600 300 550 750 71 6500 ESDD100830 1000 800 300 750 950 128p.540 p.506 p.510 p.541 p.592 p.600 p.644
