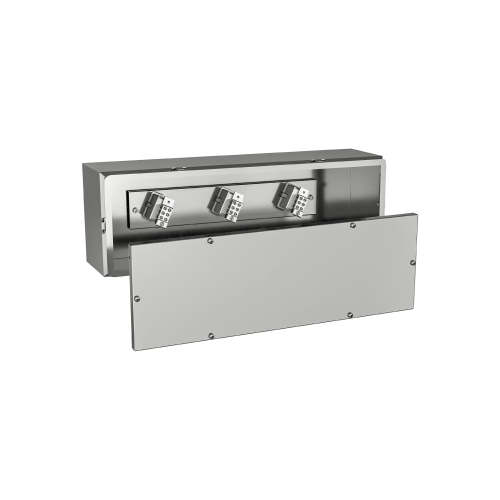

The 1412 BSS & TSS stainless steel splitter boxes and troughs are designed for 600 V (max.) service, 3 or 4 wires, in ordinary locations. There is a curled lip around all sides to increase rigidity and prevent water from entering the enclosure when it is open. They are made of high quality 14 GA or 16 GA stainless steel. They have four mounting holes and a screw cover. There are no knockouts. The phenolic insulated splitter blocks are factory installed on an interior panel, which is mounted on welded studs. Optional mounting feet are available (885 CHSSMF). The enclosure is unpainted and brushed smooth. Inner panel is galvanized (other colors available).
CSA Certified NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 TSSP5103 | 60 | 6 | 5 | 24 lbs | 2D PDF | 3D File |
| 1412 TSSP3203 | 36 | 8 | 6 | 26 lbs | 2D PDF | 3D File |
| 1412 TSSP3204 | 36 | 8 | 6 | 27 lbs | 2D PDF | 3D File |
| 1412 TSSP3403 | 36 | 11 | 8 | 34 lbs | 2D PDF | 3D File |
| 1412 TSSP373 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 TSSP374 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 TSSP4103 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 TSSP4104 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 TSSP4203 | 48 | 8 | 6 | 32 lbs | 2D PDF | 3D File |
| 1412 TSSP4204 | 48 | 8 | 6 | 33 lbs | 2D PDF | 3D File |
| 1412 TSSP4403 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 TSSP4404 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 TSSP4603 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 TSSP4604 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 TSSP473 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 TSSP474 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 TSS6103 | 72 | 6 | 5 | 28 lbs | 2D PDF | 3D File |
| 1412 TSS6104 | 72 | 6 | 5 | 29 lbs | 2D PDF | 3D File |
| 1412 TSS6203 | 72 | 8 | 6 | 46 lbs | 2D PDF | 3D File |
| 1412 TSS6204 | 72 | 8 | 6 | 47 lbs | 2D PDF | 3D File |
| 1412 TSS6403 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 TSS6404 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
| 1412 TSS6603 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 TSS6604 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
| 1412 TSSP2103 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 TSSP2104 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 TSSP2203 | 24 | 8 | 6 | 19 lbs | 2D PDF | 3D File |
| 1412 TSSP273 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 TSSP274 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 TSSP3103 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 TSSP3104 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 TSS4204 | 48 | 8 | 6 | 33 lbs | 2D PDF | 3D File |
| 1412 TSS4403 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 TSS4404 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 TSS4603 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 TSS4604 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 TSS473 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 TSS474 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 TSS5103 | 60 | 6 | 5 | 24 lbs | 2D PDF | 3D File |
| 1412 TSS5104 | 60 | 6 | 5 | 25 lbs | 2D PDF | 3D File |
| 1412 TSS5203 | 60 | 8 | 6 | 40 lbs | 2D PDF | 3D File |
| 1412 TSS5204 | 60 | 8 | 6 | 41 lbs | 2D PDF | 3D File |
| 1412 TSS5403 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 TSS5404 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 TSS5603 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 TSS5604 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 TSS2103 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 TSS2104 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 TSS2203 | 24 | 8 | 6 | 19 lbs | 2D PDF | 3D File |
| 1412 TSS273 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 TSS274 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 TSS3103 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 TSS3104 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 TSS3203 | 36 | 8 | 6 | 26 lbs | 2D PDF | 3D File |
| 1412 TSS3204 | 36 | 8 | 6 | 27 lbs | 2D PDF | 3D File |
| 1412 TSS3403 | 36 | 11 | 8 | 34 lbs | 2D PDF | 3D File |
| 1412 TSS373 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 TSS374 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 TSS4103 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 TSS4104 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 TSS4203 | 48 | 8 | 6 | 32 lbs | 2D PDF | 3D File |
| 1412 TSSP5104 | 60 | 6 | 5 | 25 lbs | 2D PDF | 3D File |
| 1412 TSSP5203 | 60 | 8 | 6 | 40 lbs | 2D PDF | 3D File |
| 1412 TSSP5204 | 60 | 8 | 6 | 41 lbs | 2D PDF | 3D File |
| 1412 TSSP5403 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 TSSP5404 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 TSSP5603 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 TSSP5604 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 TSSP6103 | 72 | 6 | 5 | 28 lbs | 2D PDF | 3D File |
| 1412 TSSP6104 | 72 | 6 | 5 | 29 lbs | 2D PDF | 3D File |
| 1412 TSSP6203 | 72 | 8 | 6 | 46 lbs | 2D PDF | 3D File |
| 1412 TSSP6204 | 72 | 8 | 6 | 47 lbs | 2D PDF | 3D File |
| 1412 TSSP6403 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 TSSP6404 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
| 1412 TSSP6603 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 TSSP6604 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
