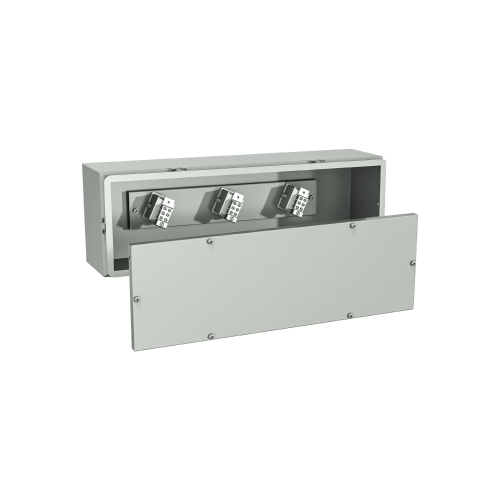

The 1412 B & T splitter boxes and troughs are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. There is a curled lip around all sides to increase rigidity and prevent water from entering the enclosure when it is open. This also increases rigidity. They are made of high quality 14 GA or 16 GA steel. They have four mounting holes and a screw cover. There are no knockouts. The phenolic insulated splitter blocks are factory installed on an interior panel, which is mounted on welded studs. Optional mounting feet are available (885 CHMF). Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray Inner panel is galvanized (other colors available).
CSA Certified NEMA/EEMAC 3R-4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 T2103 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 T5104 | 60 | 6 | 5 | 25 lbs | 2D PDF | 3D File |
| 1412 T2104 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 T5203 | 60 | 8 | 6 | 40 lbs | 2D PDF | 3D File |
| 1412 T2203 | 24 | 8 | 6 | 19 lbs | 2D PDF | 3D File |
| 1412 T5204 | 60 | 8 | 6 | 41 lbs | 2D PDF | 3D File |
| 1412 T273 | 24 | 6 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 T5403 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 T274 | 24 | 6 | 5 | 13 lbs | 2D PDF | 3D File |
| 1412 T5404 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 T3103 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 T5603 | 60 | 11 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 T3104 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 T5604 | 60 | 11 | 8 | 51 lbs | 2D PDF | 3D File |
| 1412 T3203 | 36 | 8 | 6 | 26 lbs | 2D PDF | 3D File |
| 1412 T6103 | 72 | 6 | 5 | 28 lbs | 2D PDF | 3D File |
| 1412 T3204 | 36 | 8 | 6 | 27 lbs | 2D PDF | 3D File |
| 1412 T6104 | 72 | 6 | 5 | 29 lbs | 2D PDF | 3D File |
| 1412 T3403 | 36 | 11 | 8 | 34 lbs | 2D PDF | 3D File |
| 1412 T6203 | 72 | 8 | 6 | 46 lbs | 2D PDF | 3D File |
| 1412 T373 | 36 | 6 | 5 | 15 lbs | 2D PDF | 3D File |
| 1412 T6204 | 72 | 8 | 6 | 47 lbs | 2D PDF | 3D File |
| 1412 T374 | 36 | 6 | 5 | 16 lbs | 2D PDF | 3D File |
| 1412 T6403 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 T4103 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 T6404 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
| 1412 T4104 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 T6603 | 72 | 11 | 8 | 59 lbs | 2D PDF | 3D File |
| 1412 T4203 | 48 | 8 | 6 | 32 lbs | 2D PDF | 3D File |
| 1412 T6604 | 72 | 11 | 8 | 60 lbs | 2D PDF | 3D File |
| 1412 T4204 | 48 | 8 | 6 | 33 lbs | 2D PDF | 3D File |
| 1412 T4403 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 T4404 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 T4603 | 48 | 11 | 8 | 42 lbs | 2D PDF | 3D File |
| 1412 T4604 | 48 | 11 | 8 | 43 lbs | 2D PDF | 3D File |
| 1412 T473 | 48 | 6 | 5 | 20 lbs | 2D PDF | 3D File |
| 1412 T474 | 48 | 6 | 5 | 21 lbs | 2D PDF | 3D File |
| 1412 T5103 | 60 | 6 | 5 | 24 lbs | 2D PDF | 3D File |
