Type 4X, 12 | Auge Répartitrice de Barres Omnibus Inoxydable avec Barres Omnibus en Aluminium et Couvercle Sécurisé par 1/4 de tour

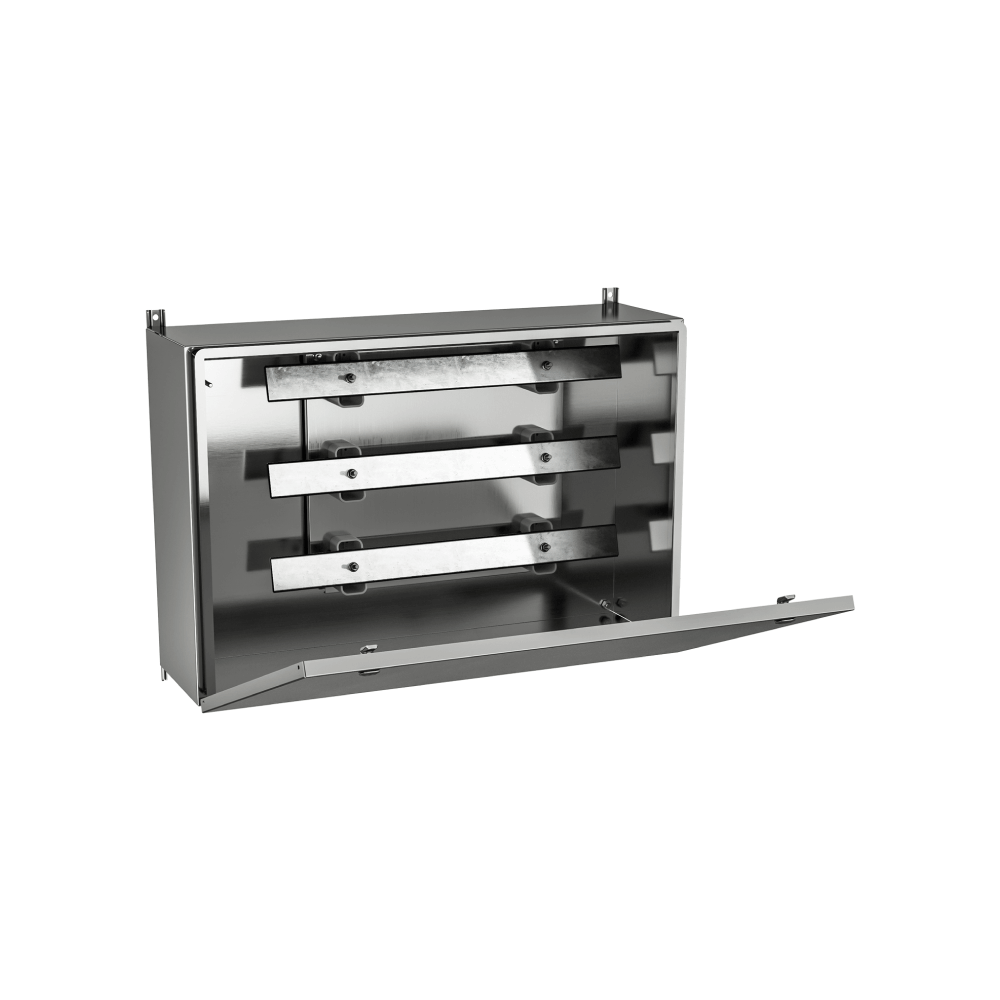

The 1412 BTSS bus bar splitter troughs are used indoors or outdoors to house bus bars for power distribution. Troughs and covers are made of high quality 14 GA stainless steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place gasket ensures a complete and durable water tight seal. The captive pins of the concealed hinges can be pulled to remove the door. Quarter turn mechanisms ensure positive closing. Troughs are available in configurations of 3, 4 or 5 aluminum, tin plated bus bars, which mount on slanted insulators that are installed on an inner panel. Lugs must be ordered separately. There are no knockouts. Bus bars are also available drilled and tapped 1/4 – 20 at 6” intervals, just add suffix ‘DT’ to the catalog number (ie. 1412 BTSS…DT). Troughs are unpainted and brushed smooth. Inner panel is galvanized (other colors available).

CSA Certified NEMA/EEMAC 4X / IP66
