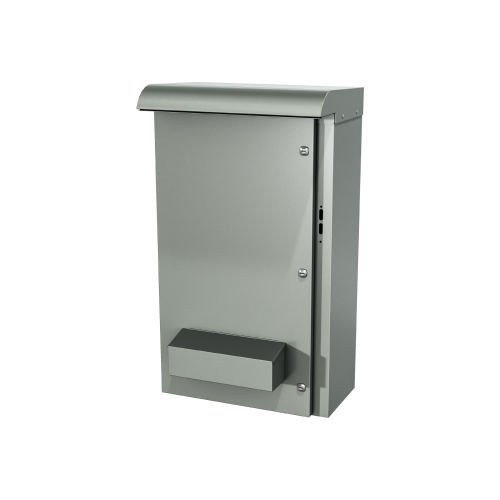

Type 3R | Boîtier Porte Simple pour Sectionneur de Sécurité Monté sur Bride Droite avec pare-goutte et système de ventilation

The 5300 EWBY right flange mounted safety disconnect enclosures are used where the control installation does not require a high degree of protection (such as watertight or dust tight), but where a quality enclosure is needed. The 5300 EWBY are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around three sides to increases rigidity and prevent dripping water from entering the enclosure when the door is open. The pins of the concealed hinges can be pulled out to remove the door. The 5300 EWBY features a convenient factory installed door handle which interlocks with the disconnect switch and facilitates the installation of the enclosure, streamlines the ordering process and increases the ease of use of the enclosure. Enclosures higher than 42” are equipped with a 3 point locking mechanism while smaller enclosures come with a 2 point locking mechanism. Door stiffeners are also provided on larger models. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent† for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).

NEMA/EEMAC 3R / IP32
