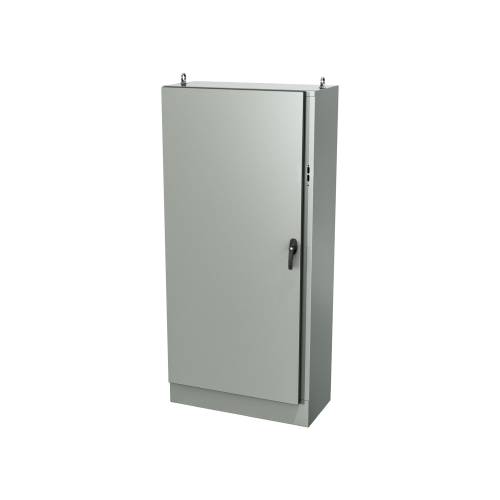

Type 12, 13 | Armoire Autoportante à une Porte pour Déconnexion de Sécurité Montée sur Bride Droite

The 9500 UxD oil and dust tight right flange mounted safety disconnect enclosures are used indoors for protection against dirt, dust, oil and water splashing. One, two or three door combinations are available. The 9500 UxD are made from quality code gauge steel with all seams continuously welded. Most center posts can be removed (refer to drawings) to facilitate the installation of the inner panel. The ball bearing pins of the concealed die cast hinges can be easily pulled out to remove the doors. Three point automotive padlockable handles ensure positive closing on all doors. The new latching rod system interlocks with the disconnect handle and eliminates the need to purchase an adaptor. A door interlock is installed to ensure that the left hand door(s) (slave) can only be opened if the right hand door (master) is open and the disconnect switch is powered off. Door and body stiffeners are provided on larger models. Each enclosure comes complete with a galvanized inner panel which mount on M10 welded studs. A print pocket is provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61smooth gray. Inner panel is galvanized (other colors available).

Certifié CSA / Homologué UL NEMA/EEMAC 12-13 / IP55
