Type 12, 13 | Boîtier pour Déconnexion de Sécurité

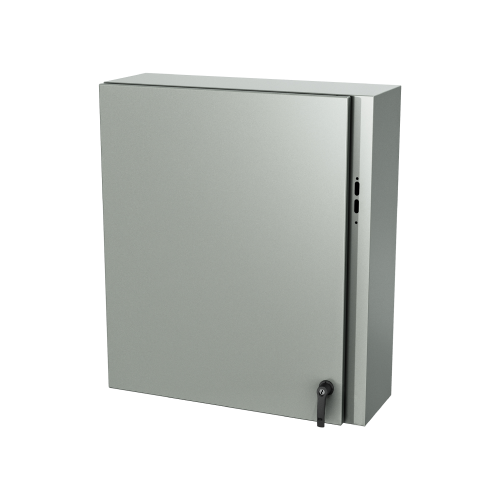

The 5500 ESY right flange mounted safety disconnect enclosures are used indoors for protection against dirt, dust and water splashing. The 5500 ESY are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around three sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. The pins of the concealed hinges can be pulled out to remove the door. The 5500 ESY features a convenient factory installed door handle, which interlocks with the disconnect switch and facilitates the installation of the enclosure, streamlines the ordering process and increases the ease of use of the enclosure. Enclosures higher than 42” are equipped with a 3 point locking mechanism while smaller enclosures come with a 2 point locking mechanism. Door stiffeners are also provided on larger models. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent† for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).

Certifié CSA / Homologué UL NEMA/EEMAC 12-13 / IP55
