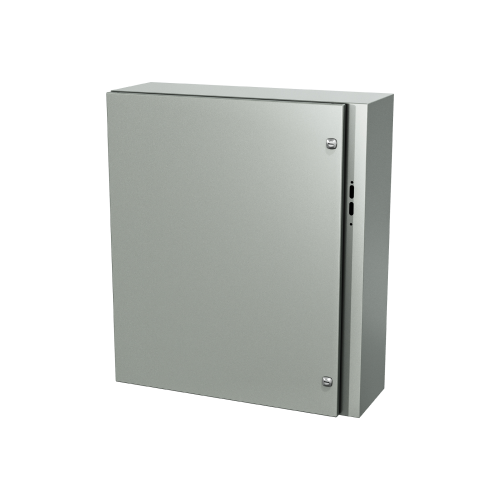

The 5412 ESA right flangemounted safety disconnect enclosures are used indoors or outdoors, where the enclosures may be subject to hosing or water coming from any direction or for protection against dirt, dust or oil. The 5412 ESA are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around three sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism interlocks with the switch to prevent opening the door when the power is live. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent†for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESA202108 | 20 | 21 | 8 | 51 lbs | 2D PDF | 3D File |
| 5412 ESA202110 | 20 | 21 | 10 | 55 lbs | 2D PDF | 3D File |
| 5412 ESA242108 | 24 | 21 | 8 | 61 lbs | 2D PDF | 3D File |
| 5412 ESA242110 | 24 | 21 | 10 | 68 lbs | 2D PDF | 3D File |
| 5412 ESA242508 | 24 | 25 | 8 | 67 lbs | 2D PDF | 3D File |
| 5412 ESA242510 | 24 | 25 | 10 | 75 lbs | 2D PDF | 3D File |
| 5412 ESA302108 | 30 | 21 | 8 | 74 lbs | 2D PDF | 3D File |
| 5412 ESA302110 | 30 | 21 | 10 | 78 lbs | 2D PDF | 3D File |
| 5412 ESA302508 | 30 | 25 | 8 | 85 lbs | 2D PDF | 3D File |
| 5412 ESA302510 | 30 | 25 | 10 | 90 lbs | 2D PDF | 3D File |
| 5412 ESA302512 | 30 | 25 | 12 | 100 lbs | 2D PDF | 3D File |
| 5412 ESA362508 | 36 | 25 | 8 | 100 lbs | 2D PDF | 3D File |
| 5412 ESA362510 | 36 | 25 | 10 | 110 lbs | 2D PDF | 3D File |
| 5412 ESA363108 | 36 | 31 | 8 | 121 lbs | 2D PDF | 3D File |
| 5412 ESA363110 | 36 | 31 | 10 | 126 lbs | 2D PDF | 3D File |
| 5412 ESA363112 | 36 | 31 | 12 | 130 lbs | 2D PDF | 3D File |
| 5412 ESA363116 | 36 | 31 | 16 | 150 lbs | 2D PDF | 3D File |
| 5412 ESA423108 | 42 | 31 | 8 | 137 lbs | 2D PDF | 3D File |
| 5412 ESA423110 | 42 | 31 | 10 | 143 lbs | 2D PDF | 3D File |
| 5412 ESA423112 | 42 | 31 | 12 | 150 lbs | 2D PDF | 3D File |
| 5412 ESA423708 | 42 | 37 | 8 | 154 lbs | 2D PDF | 3D File |
| 5412 ESA423710 | 42 | 37 | 10 | 193 lbs | 2D PDF | 3D File |
| 5412 ESA423712 | 42 | 37 | 12 | 200 lbs | 2D PDF | 3D File |
| 5412 ESA483708 | 48 | 37 | 8 | 172 lbs | 2D PDF | 3D File |
| 5412 ESA483710 | 48 | 37 | 10 | 211 lbs | 2D PDF | 3D File |
| 5412 ESA483712 | 48 | 37 | 12 | 220 lbs | 2D PDF | 3D File |
| 5412 ESA483716 | 48 | 37 | 16 | 232 lbs | 2D PDF | 3D File |
| 5412 ESA603708 | 60 | 37 | 8 | 245 lbs | 2D PDF | 3D File |
| 5412 ESA603710 | 60 | 37 | 10 | 250 lbs | 2D PDF | 3D File |
| 5412 ESA603712 | 60 | 37 | 12 | 257 lbs | 2D PDF | 3D File |
| 5412 ESA603716 | 60 | 37 | 16 | 265 lbs | 2D PDF | 3D File |
| 5412 ESAB603712 | 60 | 37 | 12 | 257 lbs | 2D PDF | 3D File |
| 5412 ESA202108TH | 20 | 21 | 8 | 51 lbs | 2D PDF | 3D File |
| 5412 ESA202110TH | 20 | 21 | 10 | 55 lbs | 2D PDF | 3D File |
| 5412 ESA242108TH | 24 | 21 | 8 | 61 lbs | 2D PDF | 3D File |
| 5412 ESA242110TH | 24 | 21 | 10 | 68 lbs | 2D PDF | 3D File |
| 5412 ESA242508TH | 24 | 25 | 8 | 67 lbs | 2D PDF | 3D File |
| 5412 ESA242510TH | 24 | 25 | 10 | 75 lbs | 2D PDF | 3D File |
| 5412 ESA302108TH | 30 | 21 | 8 | 74 lbs | 2D PDF | 3D File |
| 5412 ESA302110TH | 30 | 21 | 10 | 78 lbs | 2D PDF | 3D File |
| 5412 ESA302508TH | 30 | 25 | 8 | 85 lbs | 2D PDF | 3D File |
| 5412 ESA302510TH | 30 | 25 | 10 | 90 lbs | 2D PDF | 3D File |
| 5412 ESA302512TH | 30 | 25 | 12 | 100 lbs | 2D PDF | 3D File |
| 5412 ESA362508TH | 36 | 25 | 8 | 100 lbs | 2D PDF | 3D File |
| 5412 ESA362510TH | 36 | 25 | 10 | 110 lbs | 2D PDF | 3D File |
| 5412 ESA363108TH | 36 | 31 | 8 | 121 lbs | 2D PDF | 3D File |
| 5412 ESA363110TH | 36 | 31 | 10 | 126 lbs | 2D PDF | 3D File |
| 5412 ESA363112TH | 36 | 31 | 12 | 130 lbs | 2D PDF | 3D File |
| 5412 ESA363116TH | 36 | 31 | 16 | 150 lbs | 2D PDF | 3D File |
| 5412 ESA423108TH | 42 | 31 | 8 | 137 lbs | 2D PDF | 3D File |
| 5412 ESA423110TH | 42 | 31 | 10 | 143 lbs | 2D PDF | 3D File |
| 5412 ESA423112TH | 42 | 31 | 12 | 150 lbs | 2D PDF | 3D File |
| 5412 ESA423708TH | 42 | 37 | 8 | 154 lbs | 2D PDF | 3D File |
| 5412 ESA423710TH | 42 | 37 | 10 | 193 lbs | 2D PDF | 3D File |
| 5412 ESA423712TH | 42 | 37 | 12 | 200 lbs | 2D PDF | 3D File |
| 5412 ESA483708TH | 48 | 37 | 8 | 172 lbs | 2D PDF | 3D File |
| 5412 ESA483710TH | 48 | 37 | 10 | 211 lbs | 2D PDF | 3D File |
| 5412 ESA483712TH | 48 | 37 | 12 | 220 lbs | 2D PDF | 3D File |
| 5412 ESA483716TH | 48 | 37 | 16 | 232 lbs | 2D PDF | 3D File |
| 5412 ESA603708TH | 60 | 37 | 8 | 245 lbs | 2D PDF | 3D File |
| 5412 ESA603710TH | 60 | 37 | 10 | 250 lbs | 2D PDF | 3D File |
| 5412 ESA603712TH | 60 | 37 | 12 | 257 lbs | 2D PDF | 3D File |
| 5412 ESA603716TH | 60 | 37 | 16 | 265 lbs | 2D PDF | 3D File |
| 5412 ESAB603712TH | 60 | 37 | 12 | 257 lbs | 2D PDF | 3D File |
