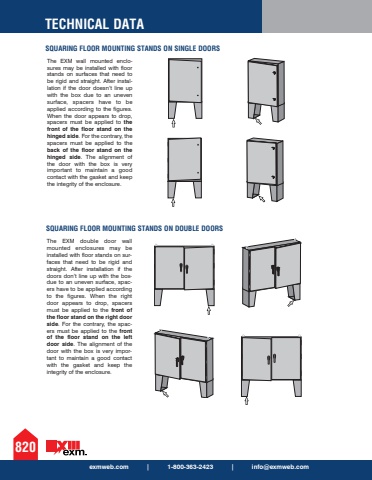

TECHNICAL DATASQUARING FLOOR MOUNTING STANDS ON SINGLE DOORS820exmweb.com | 1-800-363-2423 | [email protected] EXM wall mounted enclosures may be installed with floor stands on surfaces that need to be rigid and straight. After installation if the door doesn%u2019t line up with the box due to an uneven surface, spacers have to be applied according to the figures. When the door appears to drop, spacers must be applied to the front of the floor stand on the hinged side. For the contrary, the spacers must be applied to the back of the floor stand on the hinged side. The alignment of the door with the box is very important to maintain a good contact with the gasket and keep the integrity of the enclosure. The EXM double door wall mounted enclosures may be installed with floor stands on surfaces that need to be rigid and straight. After installation if the doors don%u2019t line up with the boxdue to an uneven surface, spacers have to be applied according to the figures. When the right door appears to drop, spacers must be applied to the front of the floor stand on the right door side. For the contrary, the spacers must be applied to the front of the floor stand on the left door side. The alignment of the door with the box is very important to maintain a good contact with the gasket and keep the integrity of the enclosure.SQUARING FLOOR MOUNTING STANDS ON DOUBLE DOORS
