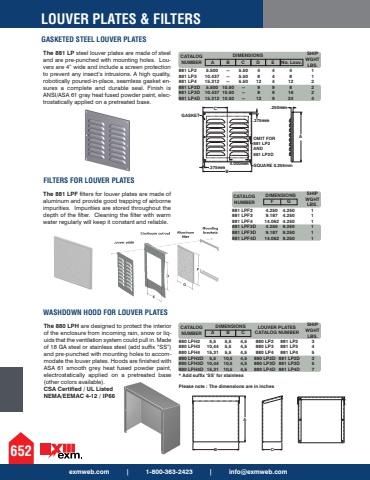

exmweb.com | 1-800-363-2423 | [email protected] PLATES & FILTERSGASKETED STEEL LOUVER PLATESFILTERS FOR LOUVER PLATES652WASHDOWN HOOD FOR LOUVER PLATESThe 880 LPH are designed to protect the interior of the enclosure from incoming rain, snow or liquids that the ventilation system could pull in. Made of 18 GA steel or stainless steel (add suffix %u201cSS%u201d) and pre-punched with mounting holes to accommodate the louver plates. Hoods are finished with ASA 61 smooth grey heat fused powder paint, electrostatically applied on a pretreated base (other colors available). CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66B CACATALOG NUMBER880 LPH2 5,5 5,5 4,5 880 LP2 881 LP2 3 880 LPH3 10,44 5,5 4,5 880 LP3 881 LP3 4 880 LPH4 15,31 5,5 4,5 880 LP4 881 LP4 5 880 LPH2D 5,5 10,5 4,5 880 LP2D 881 LP2D 3 880 LPH3D 10,44 10,5 4,5 880 LP3D 881 LP3D 5 880 LPH4D 15,31 10,5 4,5 880 LP4D 881 LP4D 7 * Add suffix %u2018SS%u2019 for stainless Please note : The dimensions are in inchesA B CLOUVER PLATES CATALOG NUMBERSHIP WGHT LBS.DIMENSIONSCATALOG NUMBER881 LPF2 4.250 4.250 1 881 LPF3 9.187 4.250 1 881 LPF4 14.062 4.250 1 881 LPF2D 4.250 9.250 1 881 LPF3D 9.187 9.250 1 881 LPF4D 14.062 9.250 1SHIP WGHT LBS. F GDIMENSIONSThe 881 LP steel louver plates are made of steel and are pre-punched with mounting holes. Louvers are 4%u201d wide and include a screen protection to prevent any insect%u2019s intrusions. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable seal. Finish is ANSI/ASA 61 gray heat fused powder paint, electrostatically applied on a pretreated base. CATALOG NUMBER881 LP2 5.500 -- 5.50 4 4 4 1 881 LP3 10.437 -- 5.50 8 4 8 1 881 LP4 15.312 -- 5.50 12 4 12 2 881 LP2D 5.500 10.50 -- 9 9 8 2 881 LP3D 10.437 10.50 -- 8 9 16 2 881 LP4D 15.312 10.50 -- 12 9 24 4A B C D E No. Louv.SHIP WGHT LBS.DIMENSIONS.375mmC.375mm4.000mmBOMIT FOR A881 LP2AND881 LP2DSQUARE 0.256mmGASKET.250mmThe 881 LPF filters for louver plates are made of aluminum and provide good trapping of airborne impurities. Impurities are stored throughout the depth of the filter. Cleaning the filter with warm water regularly will keep it constant and reliable.
