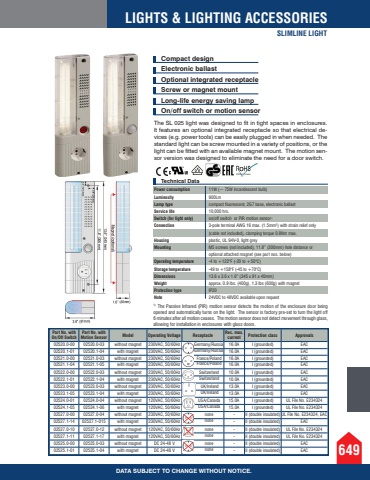

649LIGHTS & LIGHTING ACCESSORIESSLIMLINE LIGHTDATA SUBJECT TO CHANGE WITHOUT NOTICE.Part No. with On/Off SwitchPart No. with Motion Sensor Model Operating Voltage Receptacle Rec. max. current Protection class Approvals02520.0-00 02520.0-03 without magnet 230VAC, 50/60Hz Germany/Russia 16.0A I (grounded) EAC02520.1-01 02520.1-04 with magnet 230VAC, 50/60Hz Germany/Russia 16.0A I (grounded) EAC02521.0-00 02521.0-03 without magnet 230VAC, 50/60Hz France/Poland 16.0A I (grounded) EAC02521.1-04 02521.1-05 with magnet 230VAC, 50/60Hz France/Poland 16.0A I (grounded) EAC02522.0-00 02522.0-03 without magnet 230VAC, 50/60Hz Switzerland 10.0A I (grounded) EAC02522.1-01 02522.1-04 with magnet 230VAC, 50/60Hz Switzerland 10.0A I (grounded) EAC02523.0-00 02523.0-03 without magnet 230VAC, 50/60Hz UK/Ireland 13.0A I (grounded) EAC02523.1-05 02523.1-04 with magnet 230VAC, 50/60Hz UK/Ireland 13.0A I (grounded) EAC02524.0-01 02524.0-04 without magnet 120VAC, 50/60Hz USA/Canada 15.0A I (grounded) UL File No. E23432402524.1-05 02524.1-06 with magnet 120VAC, 50/60Hz USA/Canada 15.0A I (grounded) UL File No. E23432402527.0-00 02527.0-04 without magnet 230VAC, 50/60Hz none - II (double insulated) UL File No. E234324, EAC02527.1-14 02527.1-015 with magnet 230VAC, 50/60Hz none - II (double insulated) EAC02527.0-10 02527.0-12 without magnet 120VAC, 50/60Hz none - II (double insulated) UL File No. E23432402527.1-11 02527.1-17 with magnet 120VAC, 50/60Hz none - II (double insulated) UL File No. E23432402525.0-00 02525.0-03 without magnet DC 24-48 V none - II (double insulated) EAC02525.1-01 02525.1-04 with magnet DC 24-48 V none - II (double insulated) EACTechnical DataCompact design Electronic ballast Optional integrated receptacle Screw or magnet mount Long-life energy saving lamp On/off switch or motion sensorPower consumption 11W (~ 75W incandescent bulb)Luminosity 900LmLamp type compact fluorescent, 2G7 base, electronic ballastService life 10,000 hrs.Switch (for light only) on/off switch or PIR motion sensor1)Connection 3-pole terminal AWG 16 max. (1.5mm%u00b2) with strain relief only (cable not included), clamping torque 0.8Nm max.Housing plastic, UL 94V-0, light greyMounting M5 screws (not included), 11.8%u201d (300mm) hole distance or optional attached magnet (see part nos. below)Operating temperature -4 to +122%u00b0F (-20 to +50%u00b0C)Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Dimensions 13.6 x 3.6 x 1.6%u201d (345 x 91 x 40mm) Weight approx. 0.9 lbs. (400g), 1.3 lbs (600g) with magnetProtection type IP20 Note 24VDC to 48VDC available upon request1) The Passive Infrared (PIR) motion sensor detects the motion of the enclosure door being opened and automatically turns on the light. The sensor is factory pre-set to turn the light off 6 minutes after all motion ceases. The motion sensor does not detect movement through glass, allowing for installation in enclosures with glass doors.The SL 025 light was designed to fit in tight spaces in enclosures. It features an optional integrated receptacle so that electrical devices (e.g. power tools) can be easily plugged in when needed. The standard light can be screw mounted in a variety of positions, or the light can be fitted with an available magnet mount. The motion sensor version was designed to eliminate the need for a door switch.
