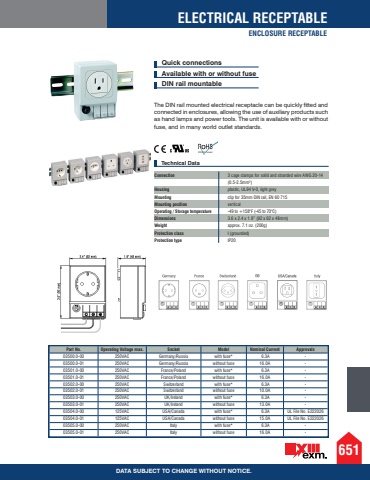

651ELECTRICAL RECEPTABLEENCLOSURE RECEPTABLEDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataQuick connections Available with or without fuse DIN rail mountableThe DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures, allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with or without fuse, and in many world outlet standards.Connection 3 cage clamps for solid and stranded wire AWG 20-14 (0.5-2.5mm%u00b2) Housing plastic, UL94 V-0, light greyMounting clip for 35mm DIN rail, EN 60 715 Mounting position verticalOperating / Storage temperature -49 to +158%u00b0F (-45 to 70%u00b0C) Dimensions 3.6 x 2.4 x 1.9%u201d (92 x 62 x 48mm)Weight approx. 7.1 oz. (200g)Protection class I (grounded) Protection type IP20Part No. Operating Voltage max. Socket Model Nominal Current Approvals03500.0-00 250VAC Germany/Russia with fuse* 6.3A -03500.0-01 250VAC Germany/Russia without fuse 16.0A -03501.0-00 250VAC France/Poland with fuse* 6.3A -03501.0-01 250VAC France/Poland without fuse 16.0A -03502.0-00 250VAC Switzerland with fuse* 6.3A -03502.0-01 250VAC Switzerland without fuse 10.0A -03503.0-00 250VAC UK/Ireland with fuse* 6.3A -03503.0-01 250VAC UK/Ireland without fuse 13.0A -03504.0-00 125VAC USA/Canada with fuse* 6.3A UL File No. E22202603504.0-01 125VAC USA/Canada without fuse 15.0A UL File No. E22202603505.0-00 250VAC Italy with fuse* 6.3A -03505.0-01 250VAC Italy without fuse 16.0A -
