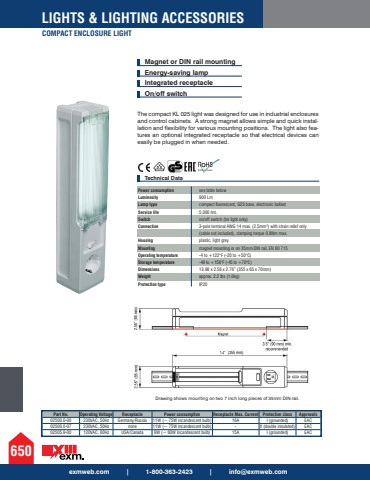

exmweb.com | 1-800-363-2423 | [email protected] & LIGHTING ACCESSORIESCOMPACT ENCLOSURE LIGHT650Technical DataMagnet or DIN rail mounting Energy-saving lamp Integrated receptacle On/off switchPower consumption see table belowLuminosity 900 LmLamp type compact fluorescent, G23 base, electronic ballastService life 5,000 hrs.Switch on/off switch (for light only)Connection 3-pole terminal AWG 14 max. (2.5mm%u00b2) with strain relief only (cable not included), clamping torque 0.8Nm max.Housing plastic, light grey Mounting magnet mounting or on 35mm DIN rail, EN 60 715Operating temperature -4 to +122%u00b0F (-20 to +50%u00b0C)Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Dimensions 13.98 x 2.56 x 2.76%u201d (355 x 65 x 70mm)Weight approx. 2.2 lbs (1.0kg)Protection type IP20The compact KL 025 light was designed for use in industrial enclosures and control cabinets. A strong magnet allows simple and quick installation and flexibility for various mounting positions. The light also features an optional integrated receptacle so that electrical devices can easily be plugged in when needed.Drawing shows mounting on two 7 inch long pieces of 35mm DIN rail.Part No. Operating Voltage Receptacle Power consumption Receptacle Max. Current Protection class Approvals02500.0-00 230VAC, 50Hz Germany/Russia 11W (~ 75W incandescent bulb) 16A I (grounded) EAC02500.0-07 230VAC, 50Hz none 11W (~ 75W incandescent bulb) - II (double insulated) EAC02505.9-00 120VAC, 60Hz USA/Canada 9W (~ 60W incandescent bulb) 15A I (grounded) EAC
