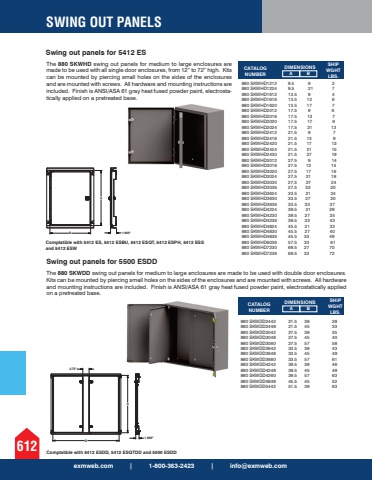

SWING OUT PANELS612AB 1.969\880 SKWHD1212 9.5 9 2 880 SKWHD1224 9.5 21 7 880 SKWHD1612 13.5 9 4 880 SKWHD1616 13.5 13 6 880 SKWHD1620 13.5 17 7 880 SKWHD2012 17.5 9 6 880 SKWHD2016 17.5 13 7 880 SKWHD2020 17.5 17 9 880 SKWHD2024 17.5 21 13 880 SKWHD2412 21.5 9 7 880 SKWHD2416 21.5 13 9 880 SKWHD2420 21.5 17 13 880 SKWHD2424 21.5 21 15 880 SKWHD2430 21.5 27 19 880 SKWHD3012 27.5 9 14 880 SKWHD3016 27.5 13 15 880 SKWHD3020 27.5 17 16 880 SKWHD3024 27.5 21 19 880 SKWHD3030 27.5 27 24 880 SKWHD3036 27.5 33 20 880 SKWHD3624 33.5 21 24 880 SKWHD3630 33.5 27 30 880 SKWHD3636 33.5 33 37 880 SKWHD4224 39.5 21 28 880 SKWHD4230 39.5 27 35 880 SKWHD4236 39.5 33 43 880 SKWHD4824 45.5 21 32 880 SKWHD4830 45.5 27 40 880 SKWHD4836 45.5 33 49 880 SKWHD6036 57.5 33 61 880 SKWHD7230 69.5 27 70 880 SKWHD7236 69.5 33 72Swing out panels for 5412 ESThe 880 SKWHD swing out panels for medium to large enclosures are made to be used with all single door enclosures, from 12%u201d to 72%u201d high. Kits can be mounted by piercing small holes on the sides of the enclosures and are mounted with screws. All hardware and mounting instructions are included. Finish is ANSI/ASA 61 gray heat fused powder paint, electrostatically applied on a pretreated base.CATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS.Swing out panels for 5500 ESDDThe 880 SKWDD swing out panels for medium to large enclosures are made to be used with double door enclosures. Kits can be mounted by piercing small holes on the sides of the enclosures and are mounted with screws. All hardware and mounting instructions are included. Finish is ANSI/ASA 61 gray heat fused powder paint, electrostatically applied on a pretreated base.CATALOG NUMBER880 SKWDD2442 21.5 39 28 880 SKWDD2448 21.5 45 33 880 SKWDD3042 27.5 39 35 880 SKWDD3048 27.5 45 40 880 SKWDD3060 27.5 57 58 880 SKWDD3642 33.5 39 43 880 SKWDD3648 33.5 45 49 880 SKWDD3660 33.5 57 61 880 SKWDD4242 39.5 39 46 880 SKWDD4248 39.5 45 49 880 SKWDD4260 39.5 57 63 880 SKWDD4848 45.5 45 52 880 SKWDD5442 51.5 39 63A BDIMENSIONS SHIP WGHT LBS.BA3.75\1.969\Comptatible with 5412 ES, 5412 ESBU, 5412 ESQT, 5412 ESPH, 5412 ESS and 5412 ESWexmweb.com | 1-800-363-2423 | [email protected] with 5412 ESDD, 5412 ESQTDD and 5500 ESDD
