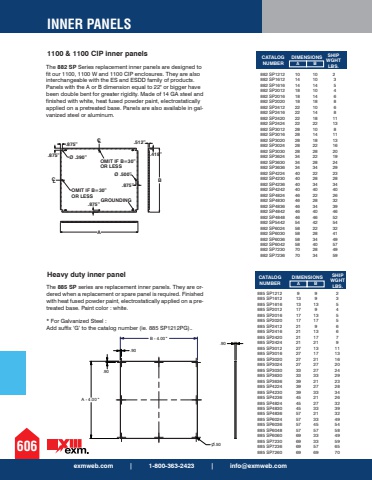

B - 4.00 \A - 4.00 \.90.90.90%u0001.50INNER PANELS606.875%u201d.875%u201d.512%u201d.418%u201d %u00d8 .390%u201dOMIT IF B=30%u201dOR LESS.875%u201dGROUNDING.875%u201dCABL%u00d8 .500%u201dOMIT IF B=30%u201dOR LESSCLThe 882 SP Series replacement inner panels are designed to fit our 1100, 1100 W and 1100 CIP enclosures. They are also interchangeable with the ES and ESDD family of products. Panels with the A or B dimension equal to 22\been double bent for greater rigidity. Made of 14 GA steel and finished with white, heat fused powder paint, electrostatically applied on a pretreated base. Panels are also available in galvanized steel or aluminum.882 SP1212 10 10 2 882 SP1612 14 10 3 882 SP1616 14 14 5 882 SP2012 18 10 4 882 SP2016 18 14 6 882 SP2020 18 18 8 882 SP2412 22 10 6 882 SP2416 22 14 8 882 SP2420 22 18 11 882 SP2424 22 22 13 882 SP3012 28 10 8 882 SP3016 28 14 11 882 SP3020 28 18 13 882 SP3024 28 22 16 882 SP3030 28 28 20 882 SP3624 34 22 19 882 SP3630 34 28 24 882 SP3636 34 34 29 882 SP4224 40 22 23 882 SP4230 40 28 28 882 SP4236 40 34 34 882 SP4242 40 40 40 882 SP4824 46 22 26 882 SP4830 46 28 32 882 SP4836 46 34 39 882 SP4842 46 40 46 882 SP4848 46 46 52 882 SP5442 54 42 54 882 SP6024 58 22 32 882 SP6030 58 28 41 882 SP6036 58 34 49 882 SP6042 58 40 57 882 SP7230 70 28 49 882 SP7236 70 34 59Heavy duty inner panelThe 885 SP series are replacement inner panels. They are ordered when a replacement or spare panel is required. Finished with heat fused powder paint, electrostatically applied on a pretreated base. Paint color : white. * For Galvanized Steel : Add suffix %u2018G%u2019 to the catalog number (ie. 885 SP1212PG)..CATALOG NUMBERSHIP WGHT LBS.CATALOG NUMBERSHIP WGHT LBS.885 SP1212 9 9 2 885 SP1612 13 9 3 885 SP1616 13 13 5 885 SP2012 17 9 4 885 SP2016 17 13 5 885 SP2020 17 17 5 885 SP2412 21 9 6 885 SP2416 21 13 6 885 SP2420 21 17 7 885 SP2424 21 21 9 885 SP3012 27 13 11 885 SP3016 27 17 13 885 SP3020 27 21 16 885 SP3024 27 27 20 885 SP3030 33 27 24 885 SP3630 33 33 29 885 SP3636 39 21 23 885 SP4224 39 27 28 885 SP4230 39 33 34 885 SP4236 45 21 26 885 SP4824 45 27 32 885 SP4830 45 33 39 885 SP4836 57 21 32 885 SP6024 57 33 49 885 SP6036 57 45 54 885 SP6048 57 57 58 885 SP6060 69 33 49 885 SP7230 69 33 59 885 SP7236 69 57 65 885 SP7260 69 69 70exmweb.com | 1-800-363-2423 | [email protected] BDIMENSIONSA BDIMENSIONS1100 & 1100 CIP inner panels
