Type 4, 12 | Boîtier Simple Porte Inoxydable

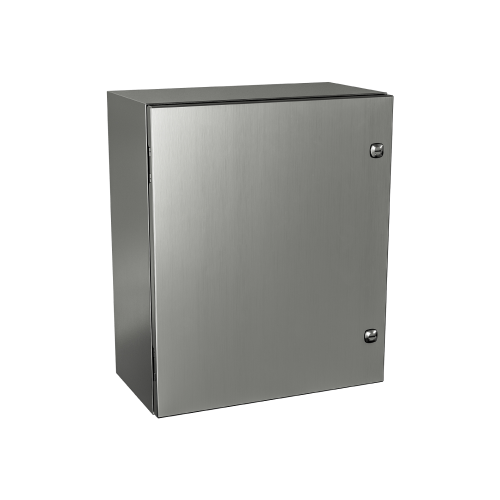

The 5412 ESS water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESS are made of high quality 14 GA or 16 GA (Type 304) stainless steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. The enclosures’ exterior is unpainted and brushed smooth. Inner panel is galvanized (other colors available).

Certifié CSA / Homologué UL NEMA/EEMAC 4X / IP66
