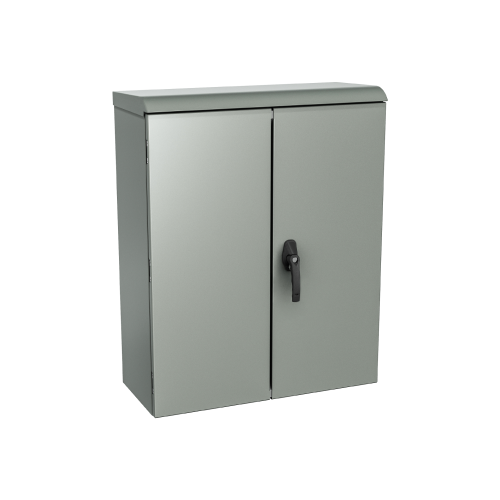

The 5300 ESDD large, double door, weatherproof enclosures are used as junction boxes or control boxes in outdoor installations, or indoors where dripping water is a problem. These enclosures are designed to protect equipment against rain, sleet and snow. The 5300 ESDD are made of high quality 14 GA steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured in place, seamless gasket ensures a complete and durable weathertight seal. The captive pins of the concealed hinges can be pulled to remove the door. The handle on the left door is closed with a 3 point padlockable handle. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 3R / IP32
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5300 ESDD303012 | 30 | 30 | 12 | 120 lbs | 2D PDF | 3D File |
| 5300 ESDD303016 | 30 | 30 | 16 | 130 lbs | 2D PDF | 3D File |
| 5300 ESDD303612 | 30 | 36 | 12 | 140 lbs | 2D PDF | 3D File |
| 5300 ESDD303616 | 30 | 36 | 16 | 150 lbs | 2D PDF | 3D File |
| 5300 ESDD304212 | 30 | 42 | 12 | 160 lbs | 2D PDF | 3D File |
| 5300 ESDD304216 | 30 | 42 | 16 | 170 lbs | 2D PDF | 3D File |
| 5300 ESDD304812 | 30 | 48 | 12 | 180 lbs | 2D PDF | 3D File |
| 5300 ESDD363012 | 36 | 30 | 12 | 140 lbs | 2D PDF | 3D File |
| 5300 ESDD363016 | 36 | 30 | 16 | 150 lbs | 2D PDF | 3D File |
| 5300 ESDD363612 | 36 | 36 | 12 | 160 lbs | 2D PDF | 3D File |
| 5300 ESDD363616 | 36 | 36 | 16 | 170 lbs | 2D PDF | 3D File |
| 5300 ESDD364212 | 36 | 42 | 12 | 180 lbs | 2D PDF | 3D File |
| 5300 ESDD364216 | 36 | 42 | 16 | 190 lbs | 2D PDF | 3D File |
| 5300 ESDD364812 | 36 | 48 | 12 | 200 lbs | 2D PDF | 3D File |
