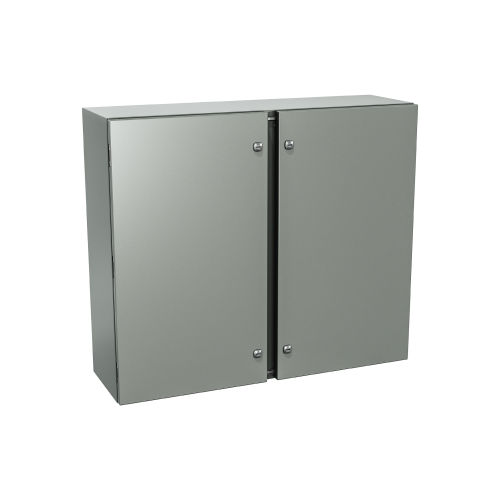

The 5412 ESDD water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESDD are made of high quality 14 GA steel, with continuously welded corner seams continuously welded. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the doors are open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESDD244208 | 24 | 42 | 8 | 117 lbs | 2D PDF | 3D File |
| 5412 ESDD244210 | 24 | 42 | 10 | 150 lbs | 2D PDF | 3D File |
| 5412 ESDD244808 | 24 | 48 | 8 | 130 lbs | 2D PDF | 3D File |
| 5412 ESDD304210 | 30 | 42 | 10 | 152 lbs | 2D PDF | 3D File |
| 5412 ESDD304810 | 30 | 48 | 10 | 168 lbs | 2D PDF | 3D File |
| 5412 ESDD306010 | 30 | 60 | 10 | 203 lbs | 2D PDF | 3D File |
| 5412 ESDD364212 | 36 | 42 | 12 | 220 lbs | 2D PDF | 3D File |
| 5412 ESDD364812 | 36 | 48 | 12 | 242 lbs | 2D PDF | 3D File |
| 5412 ESDD366012 | 36 | 60 | 12 | 292 lbs | 2D PDF | 3D File |
| 5412 ESDD424212 | 42 | 42 | 12 | 197 lbs | 2D PDF | 3D File |
| 5412 ESDD424812 | 42 | 48 | 12 | 216 lbs | 2D PDF | 3D File |
| 5412 ESDD426012 | 42 | 60 | 12 | 349 lbs | 2D PDF | 3D File |
| 5412 ESDD484812 | 48 | 48 | 12 | 225 lbs | 2D PDF | 3D File |
| 5412 ESDD544208 | 54 | 42 | 8 | 272 lbs | 2D PDF | 3D File |
| 5412 ESDD244208TH | 24 | 42 | 8 | 117 lbs | 2D PDF | 3D File |
| 5412 ESDD244210TH | 24 | 42 | 10 | 150 lbs | 2D PDF | 3D File |
| 5412 ESDD244808TH | 24 | 48 | 8 | 130 lbs | 2D PDF | 3D File |
| 5412 ESDD304210TH | 30 | 42 | 10 | 152 lbs | 2D PDF | 3D File |
| 5412 ESDD304810TH | 30 | 48 | 10 | 168 lbs | 2D PDF | 3D File |
| 5412 ESDD306010TH | 30 | 60 | 10 | 203 lbs | 2D PDF | 3D File |
| 5412 ESDD364212TH | 36 | 42 | 12 | 220 lbs | 2D PDF | 3D File |
| 5412 ESDD364812TH | 36 | 48 | 12 | 242 lbs | 2D PDF | 3D File |
| 5412 ESDD366012TH | 36 | 60 | 12 | 292 lbs | 2D PDF | 3D File |
| 5412 ESDD424212TH | 42 | 42 | 12 | 197 lbs | 2D PDF | 3D File |
| 5412 ESDD424812TH | 42 | 48 | 12 | 216 lbs | 2D PDF | 3D File |
| 5412 ESDD426012TH | 42 | 60 | 12 | 349 lbs | 2D PDF | 3D File |
| 5412 ESDD484812TH | 48 | 48 | 12 | 225 lbs | 2D PDF | 3D File |
| 5412 ESDD544208TH | 54 | 42 | 8 | 272 lbs | 2D PDF | 3D File |
