Type 4X, 12 | Boîtier Inoxydable pour Déconnexion de Sécurité

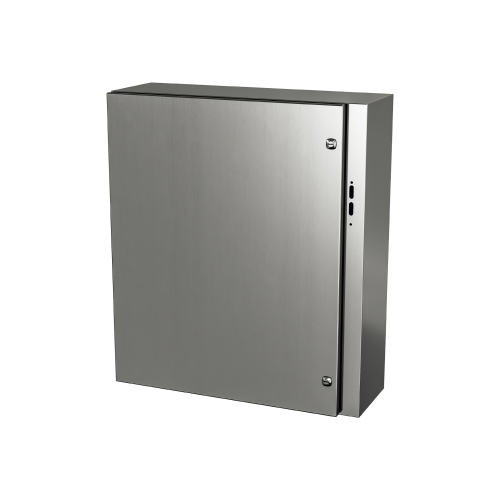

The 5412 ESSA right flange mounted safety disconnect enclosures are used indoors or outdoors, where the enclosures may be subject to hosing or water coming from any direction or for protection against dirt, dust or oil. The 5412 ESSA are made of high quality 14 GA or 16 GA (type 304) stainless steel, with continuously welded corner seams. The opening has a curled lip around three sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism interlocks with the switch to prevent opening the door when the power is live. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent† for maximum rigidity and mounts on M8 welded studs. The enclosures’ exterior is unpainted and brushed smooth. Inner panel is galvanized (other colors available).

Certifié CSA / Homologué UL NEMA/EEMAC 4X / IP66
