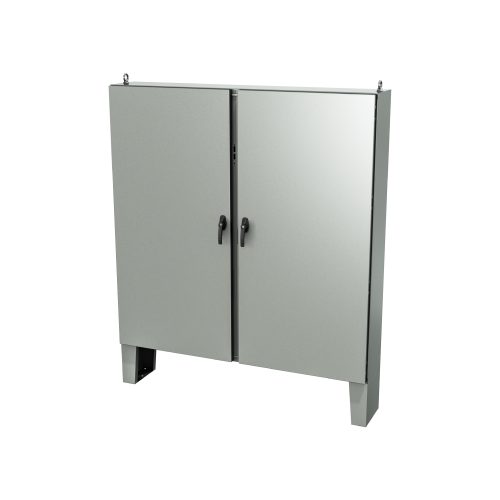

The 5500 UCD oil and dust tight center post mounted safety disconnect enclosures are used indoors for protection against dirt, dust, oil and water splashing. The 5500 UCD are made of high quality code gauge steel with all seams continuously welded. The center post can be removed to facilitate the installation of the inner panel. The ball bearing pins of the concealed die cast hinges can be easily pulled out to remove the doors. Three point automotive padlockable handles ensure positive closing on both doors. The new latching rod system interlocks with the disconnect handle and eliminates the need to purchase an adaptor. A door interlock is installed to ensure that the right hand door (slave) can only be opened if the left hand door (master) is open and the disconnect switch is powered off. Enclosures have 15” floor mounting feet installed. Door and body stiffeners are provided on larger models. Each enclosure comes complete with a galvanized inner panel, which mounts on M10 welded studs. A print pocket is provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5500 UCD604812 | 60 | 48 | 12 | 540 lbs | 2D PDF | 3D File |
| 5500 UCD604824 | 60 | 48 | 24 | 701 lbs | 2D PDF | 3D File |
| 5500 UCD606012 | 60 | 60 | 12 | 669 lbs | 2D PDF | 3D File |
| 5500 UCD606024 | 60 | 60 | 24 | 830 lbs | 2D PDF | 3D File |
| 5500 UCD726012 | 72 | 60 | 12 | 787 lbs | 2D PDF | 3D File |
| 5500 UCD727212 | 72 | 72 | 12 | 920 lbs | 2D PDF | 3D File |
| 5500 UCD727218 | 72 | 72 | 18 | 1000 lbs | 2D PDF | 3D File |
