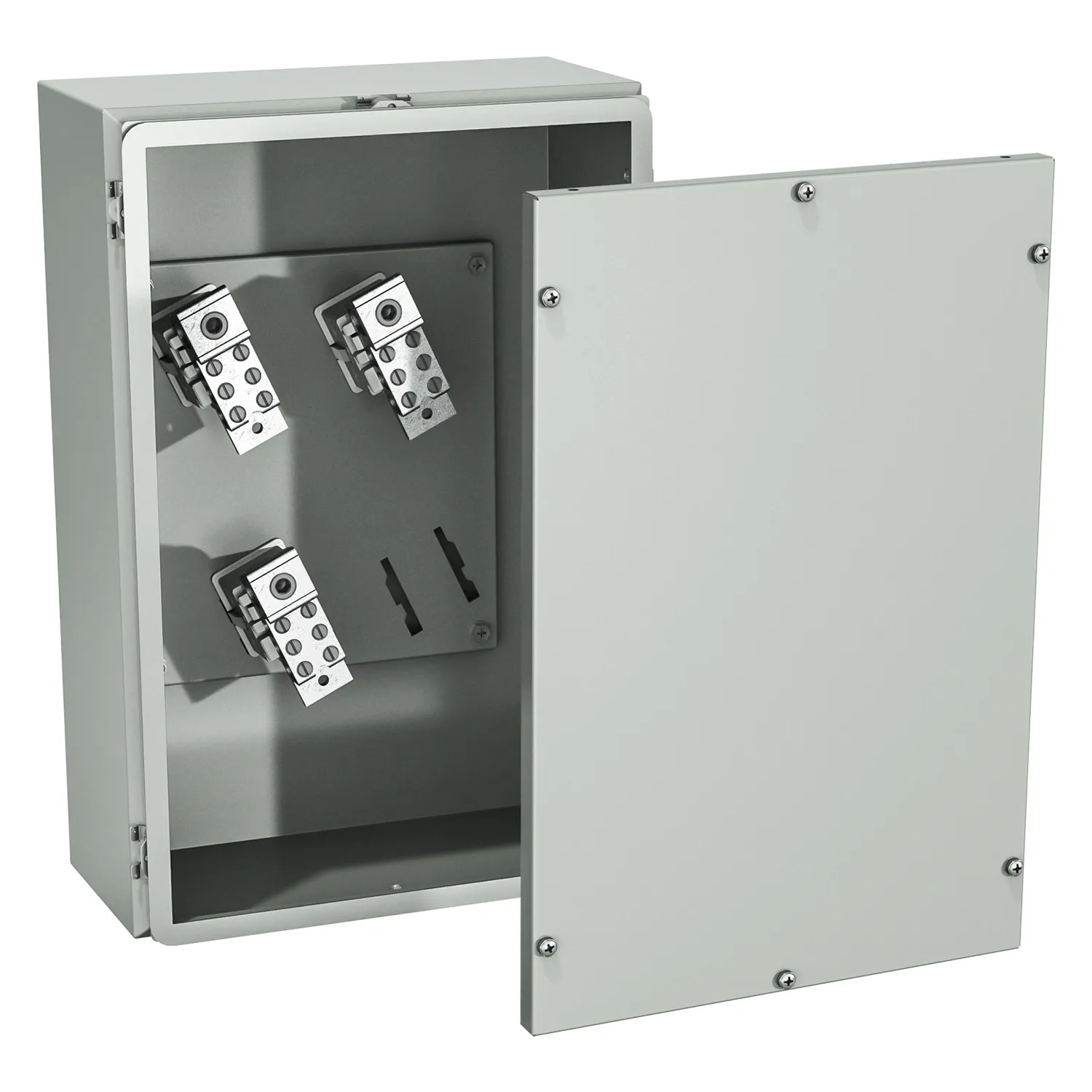

The 1412 B & T splitter boxes and troughs are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. There is a curled lip around all sides to increase rigidity and prevent water from entering the enclosure when it is open. This also increases rigidity. They are made of high quality 14 GA or 16 GA steel. They have four mounting holes and a screw cover. There are no knockouts. The phenolic insulated splitter blocks are factory installed on an interior panel, which is mounted on welded studs. Optional mounting feet are available (885 CHMF). Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray Inner panel is galvanized (other colors available).
CSA Certified NEMA/EEMAC 3R-4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 B103 | 12 | 12 | 5 | 11 lbs | 2D PDF | 3D File |
| 1412 B104 | 12 | 12 | 5 | 12 lbs | 2D PDF | 3D File |
| 1412 B203 | 18 | 12 | 6 | 16 lbs | 2D PDF | 3D File |
| 1412 B204 | 18 | 12 | 6 | 17 lbs | 2D PDF | 3D File |
| 1412 B403 | 22 | 20 | 8 | 34 lbs | 2D PDF | 3D File |
| 1412 B404 | 22 | 20 | 8 | 35 lbs | 2D PDF | 3D File |
| 1412 B603 | 26 | 25 | 8 | 49 lbs | 2D PDF | 3D File |
| 1412 B604 | 26 | 25 | 8 | 50 lbs | 2D PDF | 3D File |
| 1412 B73 | 10 | 10 | 5 | 8 lbs | 2D PDF | 3D File |
| 1412 B74 | 10 | 10 | 5 | 9 lbs | 2D PDF | 3D File |
