Montage Mural

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

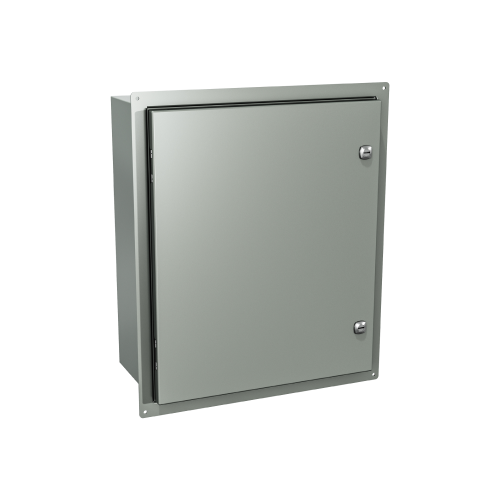

Type 4, 12 | Boîtier Simple Porte pour Montage Encastré

5412 ESFM
IP 66, 54NEMA 4, 12Acier Doux Peint ASA 61 GrisInner PanelPorte SimpleMontage Encastré
Save
Remove From Saved List
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

Afficher ma liste Fermer
BoxCad Personnalisez-le ici

The 5412 ESFM water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESFM are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically pourednplace, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. External mounting holes are pierced on a 12 GA lip all around the box. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.

CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66

  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured by ¼ turn locks.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • The enclosure’s body flange provides flush mounting.
  • Paint color: ANSI 61 smooth gray.
  • CSA certified.
  • UL listed.
  • NEMA 4,12.
  • IEC 60529 IP66.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESFM121206 12 12 6 19 lbs 2D PDF | 3D File
5412 ESFM122406 12 24 6 35 lbs 2D PDF | 3D File
5412 ESFM122408 12 24 8 38 lbs 2D PDF | 3D File
5412 ESFM161206 16 12 6 24 lbs 2D PDF | 3D File
5412 ESFM161208 16 12 8 27 lbs 2D PDF | 3D File
5412 ESFM161210 16 12 10 30 lbs 2D PDF | 3D File
5412 ESFM161606 16 16 6 31 lbs 2D PDF | 3D File
5412 ESFM161608 16 16 8 34 lbs 2D PDF | 3D File
5412 ESFM162006 16 20 6 37 lbs 2D PDF | 3D File
5412 ESFM162008 16 20 8 41 lbs 2D PDF | 3D File
5412 ESFM201206 20 12 6 29 lbs 2D PDF | 3D File
5412 ESFM201208 20 12 8 33 lbs 2D PDF | 3D File
5412 ESFM201606 20 16 6 37 lbs 2D PDF | 3D File
5412 ESFM201608 20 16 8 41 lbs 2D PDF | 3D File
5412 ESFM201610 20 16 10 44 lbs 2D PDF | 3D File
5412 ESFM201612 20 16 12 48 lbs 2D PDF | 3D File
5412 ESFM202006 20 20 6 45 lbs 2D PDF | 3D File
5412 ESFM202008 20 20 8 49 lbs 2D PDF | 3D File
5412 ESFM202010 20 20 10 53 lbs 2D PDF | 3D File
5412 ESFM202012 20 20 12 57 lbs 2D PDF | 3D File
5412 ESFM202406 20 24 6 53 lbs 2D PDF | 3D File
5412 ESFM202408 20 24 8 57 lbs 2D PDF | 3D File
5412 ESFM202412 20 24 12 66 lbs 2D PDF | 3D File
5412 ESFM241206 24 12 6 35 lbs 2D PDF | 3D File
5412 ESFM241208 24 12 8 38 lbs 2D PDF | 3D File
5412 ESFM241210 24 12 10 42 lbs 2D PDF | 3D File
5412 ESFM241606 24 16 6 44 lbs 2D PDF | 3D File
5412 ESFM241608 24 16 8 48 lbs 2D PDF | 3D File
5412 ESFM242006 24 20 6 53 lbs 2D PDF | 3D File
5412 ESFM242008 24 20 8 57 lbs 2D PDF | 3D File
5412 ESFM242010 24 20 10 62 lbs 2D PDF | 3D File
5412 ESFM242012 24 20 12 66 lbs 2D PDF | 3D File
5412 ESFM242016 24 20 16 74 lbs 2D PDF | 3D File
5412 ESFM242406 24 24 6 62 lbs 2D PDF | 3D File
5412 ESFM242408 24 24 8 67 lbs 2D PDF | 3D File
5412 ESFM242410 24 24 10 71 lbs 2D PDF | 3D File
5412 ESFM242412 24 24 12 76 lbs 2D PDF | 3D File
5412 ESFM242416 24 24 16 86 lbs 2D PDF | 3D File
5412 ESFM243008 24 30 8 81 lbs 2D PDF | 3D File
5412 ESFM301208 30 12 8 46 lbs 2D PDF | 3D File
5412 ESFM301606 30 16 6 53 lbs 2D PDF | 3D File
5412 ESFM301608 30 16 8 58 lbs 2D PDF | 3D File
5412 ESFM302006 30 20 6 65 lbs 2D PDF | 3D File
5412 ESFM302008 30 20 8 70 lbs 2D PDF | 3D File
5412 ESFM302010 30 20 10 74 lbs 2D PDF | 3D File
5412 ESFM302406 30 24 6 76 lbs 2D PDF | 3D File
5412 ESFM302408 30 24 8 81 lbs 2D PDF | 3D File
5412 ESFM302410 30 24 10 86 lbs 2D PDF | 3D File
5412 ESFM302412 30 24 12 92 lbs 2D PDF | 3D File
5412 ESFM302416 30 24 16 102 lbs 2D PDF | 3D File
5412 ESFM302420 30 24 20 113 lbs 2D PDF | 3D File
5412 ESFM302424 30 24 24 123 lbs 2D PDF | 3D File
5412 ESFM303008 30 30 8 98 lbs 2D PDF | 3D File
5412 ESFM303012 30 30 12 110 lbs 2D PDF | 3D File
5412 ESFM303608 30 36 8 116 lbs 2D PDF | 3D File
5412 ESFM362406 36 24 6 90 lbs 2D PDF | 3D File
5412 ESFM362408 36 24 8 95 lbs 2D PDF | 3D File
5412 ESFM362410 36 24 10 101 lbs 2D PDF | 3D File
5412 ESFM362412 36 24 12 107 lbs 2D PDF | 3D File
5412 ESFM362416 36 24 16 119 lbs 2D PDF | 3D File
5412 ESFM363006 36 30 6 109 lbs 2D PDF | 3D File
5412 ESFM363008 36 30 8 116 lbs 2D PDF | 3D File
5412 ESFM363010 36 30 10 122 lbs 2D PDF | 3D File
5412 ESFM363012 36 30 12 129 lbs 2D PDF | 3D File
5412 ESFM363016 36 30 16 142 lbs 2D PDF | 3D File
5412 ESFM363020 36 30 20 155 lbs 2D PDF | 3D File
5412 ESFM363608 36 36 8 136 lbs 2D PDF | 3D File
5412 ESFM363612 36 36 12 150 lbs 2D PDF | 3D File
5412 ESFM422408 42 24 8 110 lbs 2D PDF | 3D File
5412 ESFM422412 42 24 12 118 lbs 2D PDF | 3D File
5412 ESFM423008 42 30 8 133 lbs 2D PDF | 3D File
5412 ESFM423010 42 30 10 140 lbs 2D PDF | 3D File
5412 ESFM423012 42 30 12 147 lbs 2D PDF | 3D File
5412 ESFM423608 42 36 8 156 lbs 2D PDF | 3D File
5412 ESFM423610 42 36 10 164 lbs 2D PDF | 3D File
5412 ESFM423612 42 36 12 172 lbs 2D PDF | 3D File
5412 ESFM423616 42 36 16 187 lbs 2D PDF | 3D File
5412 ESFM482408 48 24 8 124 lbs 2D PDF | 3D File
5412 ESFM482412 48 24 12 138 lbs 2D PDF | 3D File
5412 ESFM483008 48 30 8 150 lbs 2D PDF | 3D File
5412 ESFM483010 48 30 10 158 lbs 2D PDF | 3D File
5412 ESFM483608 48 36 8 177 lbs 2D PDF | 3D File
5412 ESFM483610 48 36 10 185 lbs 2D PDF | 3D File
5412 ESFM483612 48 36 12 193 lbs 2D PDF | 3D File
5412 ESFM483616 48 36 16 210 lbs 2D PDF | 3D File
5412 ESFM483620 48 36 20 226 lbs 2D PDF | 3D File
5412 ESFM602412 60 24 12 169 lbs 2D PDF | 3D File
5412 ESFM603608 60 36 8 218 lbs 2D PDF | 3D File
5412 ESFM603610 60 36 10 227 lbs 2D PDF | 3D File
5412 ESFM603612 60 36 12 236 lbs 2D PDF | 3D File
5412 ESFM603616 60 36 16 255 lbs 2D PDF | 3D File
5412 ESFM603620 60 36 20 274 lbs 2D PDF | 3D File
5412 ESFM723012 72 30 12 240 lbs 2D PDF | 3D File
5412 ESFM723016 72 30 16 260 lbs 2D PDF | 3D File
5412 ESFM723020 72 30 20 280 lbs 2D PDF | 3D File
5412 ESFM723024 72 30 24 300 lbs 2D PDF | 3D File
5412 ESFM723612 72 36 12 279 lbs 2D PDF | 3D File
5412 ESFM723616 72 36 16 301 lbs 2D PDF | 3D File
5412 ESFM121206TH 12 12 6 19 lbs 2D PDF | 3D File
5412 ESFM122406TH 12 24 6 35 lbs 2D PDF | 3D File
5412 ESFM122408TH 12 24 8 38 lbs 2D PDF | 3D File
5412 ESFM161206TH 16 12 6 24 lbs 2D PDF | 3D File
5412 ESFM161208TH 16 12 8 27 lbs 2D PDF | 3D File
5412 ESFM161210TH 16 12 10 30 lbs 2D PDF | 3D File
5412 ESFM161606TH 16 16 6 31 lbs 2D PDF | 3D File
5412 ESFM161608TH 16 16 8 34 lbs 2D PDF | 3D File
5412 ESFM162006TH 16 20 6 37 lbs 2D PDF | 3D File
5412 ESFM162008TH 16 20 8 41 lbs 2D PDF | 3D File
5412 ESFM201206TH 20 12 6 29 lbs 2D PDF | 3D File
5412 ESFM201208TH 20 12 8 33 lbs 2D PDF | 3D File
5412 ESFM201606TH 20 16 6 37 lbs 2D PDF | 3D File
5412 ESFM201608TH 20 16 8 41 lbs 2D PDF | 3D File
5412 ESFM201610TH 20 16 10 44 lbs 2D PDF | 3D File
5412 ESFM201612TH 20 16 12 48 lbs 2D PDF | 3D File
5412 ESFM202006TH 20 20 6 45 lbs 2D PDF | 3D File
5412 ESFM202008TH 20 20 8 49 lbs 2D PDF | 3D File
5412 ESFM202010TH 20 20 10 53 lbs 2D PDF | 3D File
5412 ESFM202012TH 20 20 12 57 lbs 2D PDF | 3D File
5412 ESFM202406TH 20 24 6 53 lbs 2D PDF | 3D File
5412 ESFM202408TH 20 24 8 57 lbs 2D PDF | 3D File
5412 ESFM202412TH 20 24 12 66 lbs 2D PDF | 3D File
5412 ESFM241206TH 24 12 6 35 lbs 2D PDF | 3D File
5412 ESFM241208TH 24 12 8 38 lbs 2D PDF | 3D File
5412 ESFM241210TH 24 12 10 42 lbs 2D PDF | 3D File
5412 ESFM241606TH 24 16 6 44 lbs 2D PDF | 3D File
5412 ESFM241608TH 24 16 8 48 lbs 2D PDF | 3D File
5412 ESFM242006TH 24 20 6 53 lbs 2D PDF | 3D File
5412 ESFM242008TH 24 20 8 57 lbs 2D PDF | 3D File
5412 ESFM242010TH 24 20 10 62 lbs 2D PDF | 3D File
5412 ESFM242012TH 24 20 12 66 lbs 2D PDF | 3D File
5412 ESFM242016TH 24 20 16 74 lbs 2D PDF | 3D File
5412 ESFM242406TH 24 24 6 62 lbs 2D PDF | 3D File
5412 ESFM242408TH 24 24 8 67 lbs 2D PDF | 3D File
5412 ESFM242410TH 24 24 10 71 lbs 2D PDF | 3D File
5412 ESFM242412TH 24 24 12 76 lbs 2D PDF | 3D File
5412 ESFM242416TH 24 24 16 86 lbs 2D PDF | 3D File
5412 ESFM243008TH 24 30 8 81 lbs 2D PDF | 3D File
5412 ESFM301208TH 30 12 8 46 lbs 2D PDF | 3D File
5412 ESFM301606TH 30 16 6 53 lbs 2D PDF | 3D File
5412 ESFM301608TH 30 16 8 58 lbs 2D PDF | 3D File
5412 ESFM302006TH 30 20 6 65 lbs 2D PDF | 3D File
5412 ESFM302008TH 30 20 8 70 lbs 2D PDF | 3D File
5412 ESFM302010TH 30 20 10 74 lbs 2D PDF | 3D File
5412 ESFM302406TH 30 24 6 76 lbs 2D PDF | 3D File
5412 ESFM302408TH 30 24 8 81 lbs 2D PDF | 3D File
5412 ESFM302410TH 30 24 10 86 lbs 2D PDF | 3D File
5412 ESFM302412TH 30 24 12 92 lbs 2D PDF | 3D File
5412 ESFM302416TH 30 24 16 102 lbs 2D PDF | 3D File
5412 ESFM302420TH 30 24 20 113 lbs 2D PDF | 3D File
5412 ESFM302424TH 30 24 24 123 lbs 2D PDF | 3D File
5412 ESFM303008TH 30 30 8 98 lbs 2D PDF | 3D File
5412 ESFM303012TH 30 30 12 110 lbs 2D PDF | 3D File
5412 ESFM303608TH 30 36 8 116 lbs 2D PDF | 3D File
5412 ESFM362406TH 36 24 6 90 lbs 2D PDF | 3D File
5412 ESFM362408TH 36 24 8 95 lbs 2D PDF | 3D File
5412 ESFM362410TH 36 24 10 101 lbs 2D PDF | 3D File
5412 ESFM362412TH 36 24 12 107 lbs 2D PDF | 3D File
5412 ESFM362416TH 36 24 16 119 lbs 2D PDF | 3D File
5412 ESFM363006TH 36 30 6 109 lbs 2D PDF | 3D File
5412 ESFM363008TH 36 30 8 116 lbs 2D PDF | 3D File
5412 ESFM363010TH 36 30 10 122 lbs 2D PDF | 3D File
5412 ESFM363012TH 36 30 12 129 lbs 2D PDF | 3D File
5412 ESFM363016TH 36 30 16 142 lbs 2D PDF | 3D File
5412 ESFM363020TH 36 30 20 155 lbs 2D PDF | 3D File
5412 ESFM363608TH 36 36 8 136 lbs 2D PDF | 3D File
5412 ESFM363612TH 36 36 12 150 lbs 2D PDF | 3D File
5412 ESFM422408TH 42 24 8 110 lbs 2D PDF | 3D File
5412 ESFM422412TH 42 24 12 118 lbs 2D PDF | 3D File
5412 ESFM423008TH 42 30 8 133 lbs 2D PDF | 3D File
5412 ESFM423010TH 42 30 10 140 lbs 2D PDF | 3D File
5412 ESFM423012TH 42 30 12 147 lbs 2D PDF | 3D File
5412 ESFM423608TH 42 36 8 156 lbs 2D PDF | 3D File
5412 ESFM423610TH 42 36 10 164 lbs 2D PDF | 3D File
5412 ESFM423612TH 42 36 12 172 lbs 2D PDF | 3D File
5412 ESFM423616TH 42 36 16 187 lbs 2D PDF | 3D File
5412 ESFM482408TH 48 24 8 124 lbs 2D PDF | 3D File
5412 ESFM482412TH 48 24 12 138 lbs 2D PDF | 3D File
5412 ESFM483008TH 48 30 8 150 lbs 2D PDF | 3D File
5412 ESFM483010TH 48 30 10 158 lbs 2D PDF | 3D File
5412 ESFM483608TH 48 36 8 177 lbs 2D PDF | 3D File
5412 ESFM483610TH 48 36 10 185 lbs 2D PDF | 3D File
5412 ESFM483612TH 48 36 12 193 lbs 2D PDF | 3D File
5412 ESFM483616TH 48 36 16 210 lbs 2D PDF | 3D File
5412 ESFM483620TH 48 36 20 226 lbs 2D PDF | 3D File
5412 ESFM602412TH 60 24 12 169 lbs 2D PDF | 3D File
5412 ESFM603608TH 60 36 8 218 lbs 2D PDF | 3D File
5412 ESFM603610TH 60 36 10 227 lbs 2D PDF | 3D File
5412 ESFM603612TH 60 36 12 236 lbs 2D PDF | 3D File
5412 ESFM603616TH 60 36 16 255 lbs 2D PDF | 3D File
5412 ESFM603620TH 60 36 20 274 lbs 2D PDF | 3D File
5412 ESFM723012TH 72 30 12 240 lbs 2D PDF | 3D File
5412 ESFM723016TH 72 30 16 260 lbs 2D PDF | 3D File
5412 ESFM723020TH 72 30 20 280 lbs 2D PDF | 3D File
5412 ESFM723024TH 72 30 24 300 lbs 2D PDF | 3D File
5412 ESFM723612TH 72 36 12 279 lbs 2D PDF | 3D File
5412 ESFM723616TH 72 36 16 301 lbs 2D PDF | 3D File

Produits Associés

Produits similaires

Copyright © EXM Manufacturing 1975 – 2025. All Rights Reserved

    Votre Panier
    Votre panier est videRetour à l'Accueil
    Continuer la Navigation
