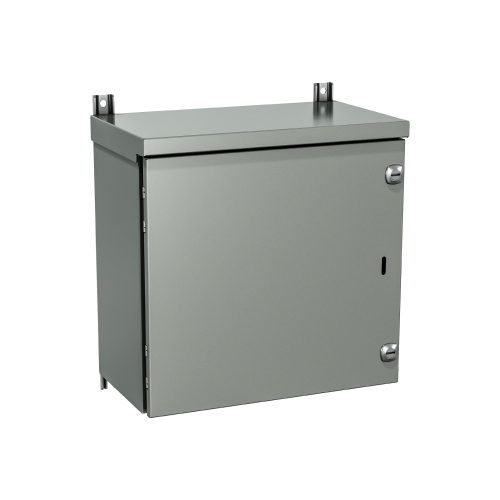

The 5300 ESG large single door weatherproof enclosures are used as junction boxes or control boxes in outdoor installations or indoors where dripping water is a problem. These enclosures are designed to protect equipment against rain, sleet and snow. The 5300 ESG are made from quality 14 GA or 16 GA galvanized steel. The opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. A high quality robotically poured-inplace seamless gasket ensures a weathertight seal. The enclosures feature die cast hinges, which are bound to the cover by an exclusive one piece concealed hinge. A ¼ turn locking mechanism ensures positive closing. Internal mounting holes are provided (optional external wall mounting feet are available). Optional 12 GA galvanized inner panel which is double bent* for maximum rigidity which mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray and inner panel is galvanized (other colors available).
NEMA/EEMAC 3R / IP32
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5300 ESG303608 | 30 | 36 | 8 | 85 lbs | 2D PDF | 3D File |
| 5300 ESG363006 | 36 | 30 | 6 | 77 lbs | 2D PDF | 3D File |
| 5300 ESG363612 | 36 | 36 | 12 | 118 lbs | 2D PDF | 3D File |
| 5300 ESG363608 | 36 | 36 | 8 | 98 lbs | 2D PDF | 3D File |
| 5300 ESG363016 | 36 | 30 | 16 | 110 lbs | 2D PDF | 3D File |
| 5300 ESG363012 | 36 | 30 | 12 | 105 lbs | 2D PDF | 3D File |
| 5300 ESG363010 | 36 | 30 | 10 | 95 lbs | 2D PDF | 3D File |
| 5300 ESG363008 | 36 | 30 | 8 | 85 lbs | 2D PDF | 3D File |
| 5300 ESG362416 | 36 | 24 | 16 | 98 lbs | 2D PDF | 3D File |
| 5300 ESG362412 | 36 | 24 | 12 | 92 lbs | 2D PDF | 3D File |
| 5300 ESG362410 | 36 | 24 | 10 | 82 lbs | 2D PDF | 3D File |
| 5300 ESG362408 | 36 | 24 | 8 | 73 lbs | 2D PDF | 3D File |
| 5300 ESG362406 | 36 | 24 | 6 | 65 lbs | 2D PDF | 3D File |
| 5300 ESG422408 | 42 | 24 | 8 | 82 lbs | 2D PDF | 3D File |
| 5300 ESG423616 | 42 | 36 | 16 | 135 lbs | 2D PDF | 3D File |
| 5300 ESG423612 | 42 | 36 | 12 | 131 lbs | 2D PDF | 3D File |
| 5300 ESG423610 | 42 | 36 | 10 | 120 lbs | 2D PDF | 3D File |
| 5300 ESG423608 | 42 | 36 | 8 | 110 lbs | 2D PDF | 3D File |
| 5300 ESG423012 | 42 | 30 | 12 | 117 lbs | 2D PDF | 3D File |
| 5300 ESG423010 | 42 | 30 | 10 | 106 lbs | 2D PDF | 3D File |
| 5300 ESG423008 | 42 | 30 | 8 | 96 lbs | 2D PDF | 3D File |
| 5300 ESG422412 | 42 | 24 | 12 | 102 lbs | 2D PDF | 3D File |
| 5300 ESG482408 | 48 | 24 | 8 | 91 lbs | 2D PDF | 3D File |
| 5300 ESG482412 | 48 | 24 | 12 | 112 lbs | 2D PDF | 3D File |
| 5300 ESG483008 | 48 | 30 | 8 | 107 lbs | 2D PDF | 3D File |
| 5300 ESG483010 | 48 | 30 | 10 | 117 lbs | 2D PDF | 3D File |
| 5300 ESG483608 | 48 | 36 | 8 | 122 lbs | 2D PDF | 3D File |
| 5300 ESG483610 | 48 | 36 | 10 | 133 lbs | 2D PDF | 3D File |
| 5300 ESG483612 | 48 | 36 | 12 | 145 lbs | 2D PDF | 3D File |
| 5300 ESG483616 | 48 | 36 | 16 | 148 lbs | 2D PDF | 3D File |
| 5300 ESG603608 | 60 | 36 | 8 | 146 lbs | 2D PDF | 3D File |
| 5300 ESG603610 | 60 | 36 | 10 | 158 lbs | 2D PDF | 3D File |
| 5300 ESG122408 | 12 | 24 | 8 | 31 lbs | 2D PDF | 3D File |
| 5300 ESG161210 | 16 | 12 | 10 | 29 lbs | 2D PDF | 3D File |
| 5300 ESG161206 | 16 | 12 | 6 | 20 lbs | 2D PDF | 3D File |
| 5300 ESG161208 | 16 | 12 | 8 | 24 lbs | 2D PDF | 3D File |
| 5300 ESG161606 | 16 | 16 | 6 | 23 lbs | 2D PDF | 3D File |
| 5300 ESG161608 | 16 | 16 | 8 | 28 lbs | 2D PDF | 3D File |
| 5300 ESG162006 | 16 | 20 | 6 | 27 lbs | 2D PDF | 3D File |
| 5300 ESG162008 | 16 | 20 | 8 | 32 lbs | 2D PDF | 3D File |
| 5300 ESG201206 | 20 | 12 | 6 | 23 lbs | 2D PDF | 3D File |
| 5300 ESG201208 | 20 | 12 | 8 | 27 lbs | 2D PDF | 3D File |
| 5300 ESG201610 | 20 | 16 | 10 | 38 lbs | 2D PDF | 3D File |
| 5300 ESG201612 | 20 | 16 | 12 | 44 lbs | 2D PDF | 3D File |
| 5300 ESG201606 | 20 | 16 | 6 | 27 lbs | 2D PDF | 3D File |
| 5300 ESG201608 | 20 | 16 | 8 | 32 lbs | 2D PDF | 3D File |
| 5300 ESG202010 | 20 | 20 | 10 | 42 lbs | 2D PDF | 3D File |
| 5300 ESG202012 | 20 | 20 | 12 | 49 lbs | 2D PDF | 3D File |
| 5300 ESG202006 | 20 | 20 | 6 | 31 lbs | 2D PDF | 3D File |
| 5300 ESG202008 | 20 | 20 | 8 | 36 lbs | 2D PDF | 3D File |
| 5300 ESG202412 | 20 | 24 | 12 | 54 lbs | 2D PDF | 3D File |
| 5300 ESG202406 | 20 | 24 | 6 | 35 lbs | 2D PDF | 3D File |
| 5300 ESG202408 | 20 | 24 | 8 | 41 lbs | 2D PDF | 3D File |
| 5300 ESG241210 | 24 | 12 | 10 | 36 lbs | 2D PDF | 3D File |
| 5300 ESG241206 | 24 | 12 | 6 | 26 lbs | 2D PDF | 3D File |
| 5300 ESG241208 | 24 | 12 | 8 | 31 lbs | 2D PDF | 3D File |
| 5300 ESG241606 | 24 | 16 | 6 | 30 lbs | 2D PDF | 3D File |
| 5300 ESG241608 | 24 | 16 | 8 | 36 lbs | 2D PDF | 3D File |
| 5300 ESG242010 | 24 | 20 | 10 | 47 lbs | 2D PDF | 3D File |
| 5300 ESG242012 | 24 | 20 | 12 | 54 lbs | 2D PDF | 3D File |
| 5300 ESG242016 | 24 | 20 | 16 | 57 lbs | 2D PDF | 3D File |
| 5300 ESG242006 | 24 | 20 | 6 | 35 lbs | 2D PDF | 3D File |
| 5300 ESG242008 | 24 | 20 | 8 | 41 lbs | 2D PDF | 3D File |
| 5300 ESG242410 | 24 | 24 | 10 | 52 lbs | 2D PDF | 3D File |
| 5300 ESG242412 | 24 | 24 | 12 | 72 lbs | 2D PDF | 3D File |
| 5300 ESG242416 | 24 | 24 | 16 | 75 lbs | 2D PDF | 3D File |
| 5300 ESG242406 | 24 | 24 | 6 | 40 lbs | 2D PDF | 3D File |
| 5300 ESG242408 | 24 | 24 | 8 | 46 lbs | 2D PDF | 3D File |
| 5300 ESG243008 | 24 | 30 | 8 | 64 lbs | 2D PDF | 3D File |
| 5300 ESG301208 | 30 | 12 | 8 | 43 lbs | 2D PDF | 3D File |
| 5300 ESG301606 | 30 | 16 | 6 | 43 lbs | 2D PDF | 3D File |
| 5300 ESG301608 | 30 | 16 | 8 | 50 lbs | 2D PDF | 3D File |
| 5300 ESG302010 | 30 | 20 | 10 | 65 lbs | 2D PDF | 3D File |
| 5300 ESG302006 | 30 | 20 | 6 | 50 lbs | 2D PDF | 3D File |
| 5300 ESG302008 | 30 | 20 | 8 | 57 lbs | 2D PDF | 3D File |
| 5300 ESG302410 | 30 | 24 | 10 | 73 lbs | 2D PDF | 3D File |
| 5300 ESG302412 | 30 | 24 | 12 | 82 lbs | 2D PDF | 3D File |
| 5300 ESG302416 | 30 | 24 | 16 | 85 lbs | 2D PDF | 3D File |
| 5300 ESG302406 | 30 | 24 | 6 | 57 lbs | 2D PDF | 3D File |
| 5300 ESG302408 | 30 | 24 | 8 | 64 lbs | 2D PDF | 3D File |
| 5300 ESG303012 | 30 | 30 | 12 | 93 lbs | 2D PDF | 3D File |
| 5300 ESG303008 | 30 | 30 | 8 | 75 lbs | 2D PDF | 3D File |
