NEMA Rating RoHS CSA Underwriter Laboratories CE mark

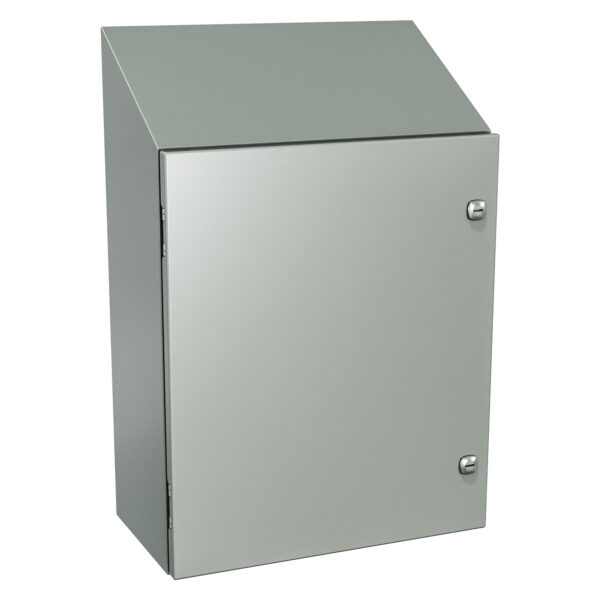

Type 4, 12 | Console à Porte Simple avec Dessus Incliné Avant

5412 ESCSF
IP 66, 54NEMA 4, 12Acier Doux Peint ASA 61 GrisInner PanelPorte Simple
BoxCad Personnalisez-le ici

The 5412 ESCSF series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.

  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured with ¼ turn locks (or a 3 point locking mechanism on larger enclosures).
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • Paint color: ANSI 61 smooth gray.
  • CSA Certified.
  • UL Listed.
  • NEMA 4, 12.
  • IEC 60529 P66.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESCSF241206 24 12 6 35 lbs 2D PDF | 3D File
5412 ESCSF241208 24 12 8 38 lbs 2D PDF | 3D File
5412 ESCSF241210 24 12 10 42 lbs 2D PDF | 3D File
5412 ESCSF241606 24 16 6 44 lbs 2D PDF | 3D File
5412 ESCSF241608 24 16 8 48 lbs 2D PDF | 3D File
5412 ESCSF242006 24 20 6 53 lbs 2D PDF | 3D File
5412 ESCSF242008 24 20 8 57 lbs 2D PDF | 3D File
5412 ESCSF242010 24 20 10 62 lbs 2D PDF | 3D File
5412 ESCSF242012 24 20 12 66 lbs 2D PDF | 3D File
5412 ESCSF242016 24 20 16 74 lbs 2D PDF | 3D File
5412 ESCSF242406 24 24 6 62 lbs 2D PDF | 3D File
5412 ESCSF242408 24 24 8 67 lbs 2D PDF | 3D File
5412 ESCSF242410 24 24 10 71 lbs 2D PDF | 3D File
5412 ESCSF242412 24 24 12 76 lbs 2D PDF | 3D File
5412 ESCSF242416 24 24 16 86 lbs 2D PDF | 3D File
5412 ESCSF243008 24 30 8 81 lbs 2D PDF | 3D File
5412 ESCSF301208 30 12 8 46 lbs 2D PDF | 3D File
5412 ESCSF301606 30 16 6 53 lbs 2D PDF | 3D File
5412 ESCSF301608 30 16 8 58 lbs 2D PDF | 3D File
5412 ESCSF302006 30 20 6 65 lbs 2D PDF | 3D File
5412 ESCSF302008 30 20 8 70 lbs 2D PDF | 3D File
5412 ESCSF302010 30 20 10 74 lbs 2D PDF | 3D File
5412 ESCSF302406 30 24 6 76 lbs 2D PDF | 3D File
5412 ESCSF302408 30 24 8 81 lbs 2D PDF | 3D File
5412 ESCSF302410 30 24 10 86 lbs 2D PDF | 3D File
5412 ESCSF302412 30 24 12 92 lbs 2D PDF | 3D File
5412 ESCSF302416 30 24 16 102 lbs 2D PDF | 3D File
5412 ESCSF302420 30 24 20 113 lbs 2D PDF | 3D File
5412 ESCSF302424 30 24 24 123 lbs 2D PDF | 3D File
5412 ESCSF303008 30 30 8 98 lbs 2D PDF | 3D File
5412 ESCSF303012 30 30 12 110 lbs 2D PDF | 3D File
5412 ESCSF303608 30 36 8 116 lbs 2D PDF | 3D File
5412 ESCSF362406 36 24 6 90 lbs 2D PDF | 3D File
5412 ESCSF362408 36 24 8 95 lbs 2D PDF | 3D File
5412 ESCSF362410 36 24 10 101 lbs 2D PDF | 3D File
5412 ESCSF362412 36 24 12 107 lbs 2D PDF | 3D File
5412 ESCSF362416 36 24 16 119 lbs 2D PDF | 3D File
5412 ESCSF363006 36 30 6 109 lbs 2D PDF | 3D File
5412 ESCSF363008 36 30 8 116 lbs 2D PDF | 3D File
5412 ESCSF363010 36 30 10 122 lbs 2D PDF | 3D File
5412 ESCSF363012 36 30 12 129 lbs 2D PDF | 3D File
5412 ESCSF363016 36 30 16 142 lbs 2D PDF | 3D File
5412 ESCSF363020 36 30 20 155 lbs 2D PDF | 3D File
5412 ESCSF363608 36 36 8 136 lbs 2D PDF | 3D File
5412 ESCSF363612 36 36 12 150 lbs 2D PDF | 3D File
5412 ESCSF422408 42 24 8 110 lbs 2D PDF | 3D File
5412 ESCSF422412 42 24 12 118 lbs 2D PDF | 3D File
5412 ESCSF423008 42 30 8 133 lbs 2D PDF | 3D File
5412 ESCSF423010 42 30 10 140 lbs 2D PDF | 3D File
5412 ESCSF423012 42 30 12 147 lbs 2D PDF | 3D File
5412 ESCSF423608 42 36 8 156 lbs 2D PDF | 3D File
5412 ESCSF423610 42 36 10 164 lbs 2D PDF | 3D File
5412 ESCSF423612 42 36 12 172 lbs 2D PDF | 3D File
5412 ESCSF423616 42 36 16 187 lbs 2D PDF | 3D File
