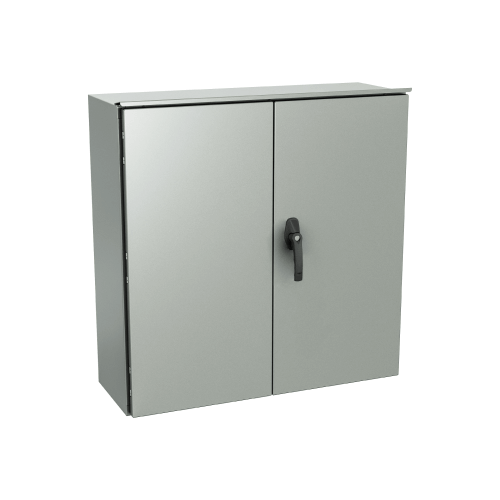

Type 3 | Boîtier Transformateur de Courant Double Porte avec Pare-Gouttes et Mécanisme de Verrouillage à 3 Points Cadenassable

5300 CTDD
IP 55NEMA 3Acier Doux Peint ASA 61 GrisDouble Porte
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

The 5300 CTDD current transformer cabinets are used indoors or outdoors to protect against rain, sleet and snow. The connections are for 400, up to 1200 Amperes 3 phase electrical service. Terminal blocks are supplied for each phase and for the neutral. The hardware to mount the current transformer (bar-style) is included. The 5300 CTDD484812 comes complete with a provision for a voltage transformer. The 5300 CTDD are made of high quality 14 GA steel. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the doors are open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable weather tight seal. The captive pins of the concealed hinges can be pulled to remove the doors. The doors are closed with a 3 point padlockable handle. Internal mounting holes are provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box ANSI/ASA 61 smooth gray.

CSA Certified / UL Listed NEMA/EEMAC 3 / IP64

  • Made of high quality steel, with continuously welded corner seams.
  • The doors are secured by a padlockable 3 point lock mechanism.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • The enclosure comes with a provision for a voltage transformer.
  • Paint color: ANSI 61 smooth gray.
  • CSA certified.
  • UL listed.
  • NEMA 3.
  • IEC 60529 IP64.
Catalog Number Dimensions Ship Weight Downloads
A B C
5300 CTDD363612 36 36 12 134 lbs 2D PDF | 3D File
5300 CTDD484812 48 48 12 209 lbs 2D PDF | 3D File
No 3D model available.
