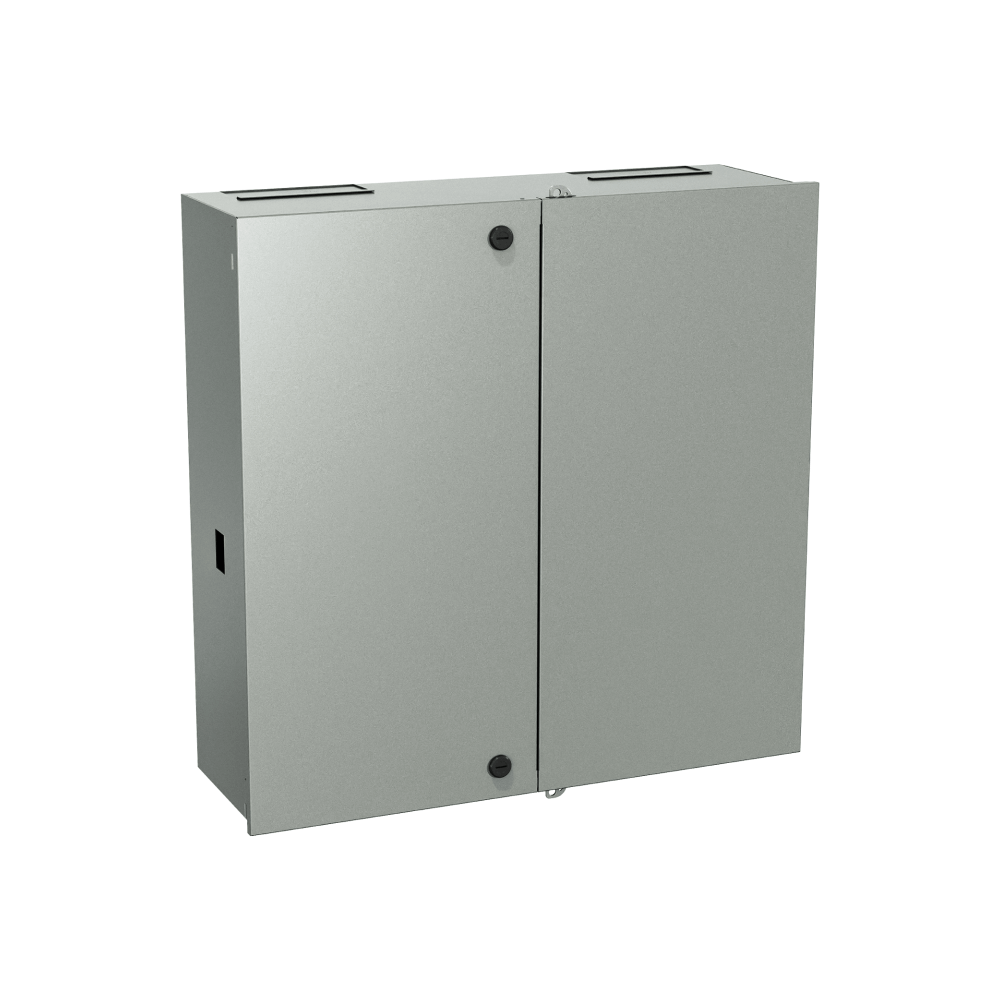

The 1100 MCHQDD metering cabinets were designed by EXM for Hydro-Québec to house metering instruments. They are made of high quality 16 GA or 14 GA steel. Three types of mounting panels are installed in each cabinet. These removable panels are made of powder coated steel. The panels are pre-punched to accommodate the metering instruments used by HydroQuébec. The larger cabinets have provisions to accommodate extra inner panels (purchased separately). A grounding splitter block is installed on the cabinet’s left side. All 1100 MCHQDD cabinets have double doors which are secured by a quarter turn mechanisms and tamper resistant hinges. There are two openings on top for meter connection. Cabinets are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box and the panel are ANSI/ASA 61 smooth gray.
Certifié CSA NEMA/EEMAC 1 / IP30
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 MCHQDD303010 | 30 | 30 | 10 | 72 lbs | PDF 2D | Fichier 3D |
| 1100 MCHQDD363612 | 36 | 36 | 12 | 55,33 kg | PDF 2D | Fichier 3D |
| 1100 MCHQDD484812 | 48 | 48 | 12 | 196 livres | PDF 2D | Fichier 3D |
