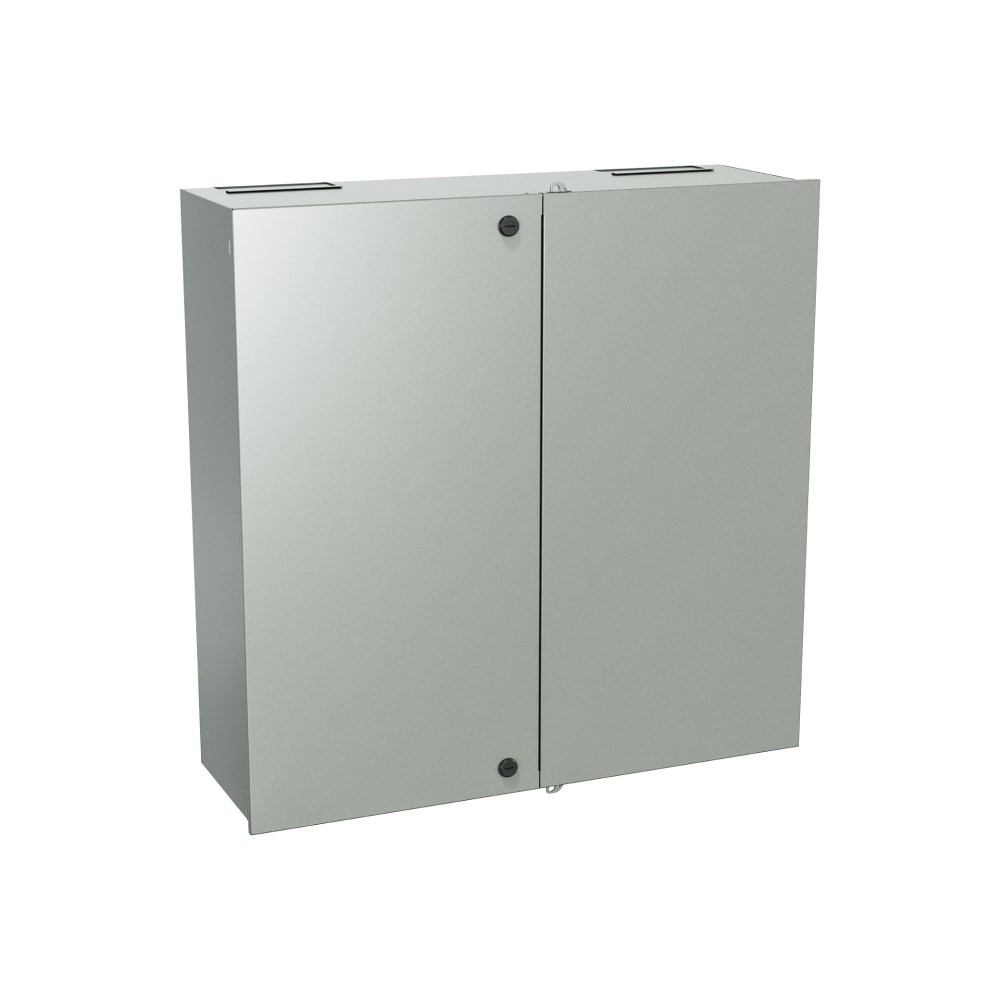

The 1100 MC/MCDD metering cabinets are designed to house metering transformers or junction boxes. They are made of high quality 16 GA or 14 GA steel. Doors are hinged with a quarter turn lock and feature a padlock provision. There is an opening on top of the cabinet for meter connection. Metering cabinets come complete with removable inner panel mounted on studs. Fixation is done by holes in the back of the cabinet. Cabinets are finished with heat fused powder paint, electro-statically applied on a pretreated base. The box and panel are ANSI/ASA 61 smooth gray.
Certifié CSA NEMA/EEMAC 1 / IP30
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 MCDD303010 | 30 | 30 | 10 | 72 lbs | PDF 2D | Fichier 3D |
| 1100 MCDD303012 | 30 | 30 | 12 | 35,38 kg | PDF 2D | Fichier 3D |
| 1100 MCDD363612 | 36 | 36 | 12 | 55,33 kg | PDF 2D | Fichier 3D |
| 1100 MCDD484812 | 48 | 48 | 12 | 196 livres | PDF 2D | Fichier 3D |
