Type 12, 13 | Kit Armoire Double Baie

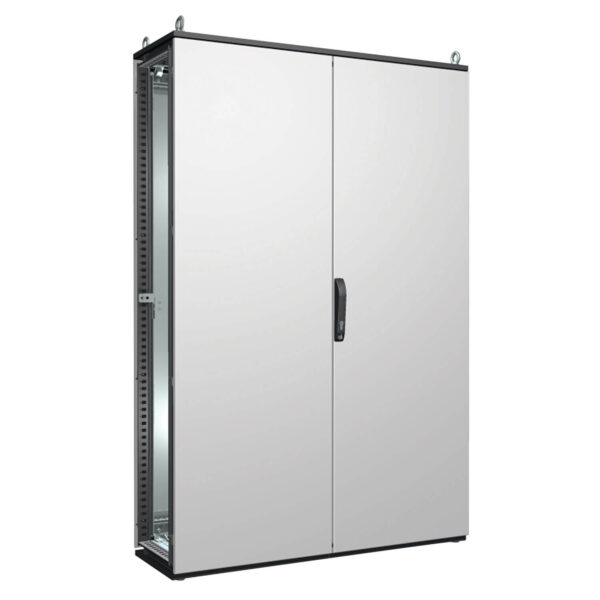

The 6500 MXKDD cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality, robotically poured-in-place gasket. The standard cabinet kits consist of:

• 6500 MX frame (painted dark gray RAL7011; galvanized)
• 6500 MXT top cover (painted dark gray RAL7011; steel)
• 6500 MXB bottom cover (painted dark gray RAL7011; steel)
• 6500 MXR rear cover (painted light gray RAL7035; steel)
• 6500 MXDD overlapping solid doors (painted light gray RAL7035; steel) – consisting of : a 4 point locking door (right side); a flange door (left side); and a standard zinc cast pull handle with slotted insert
• 6500 MXM inner mounting panel (no finish 11GA galvanized)
• 4 standard levelling feet
• 4 lifting eye bolts

NEMA/EEMAC 12-13 CSA Certified / UL Listed CE (IEC60529 / IP55)
