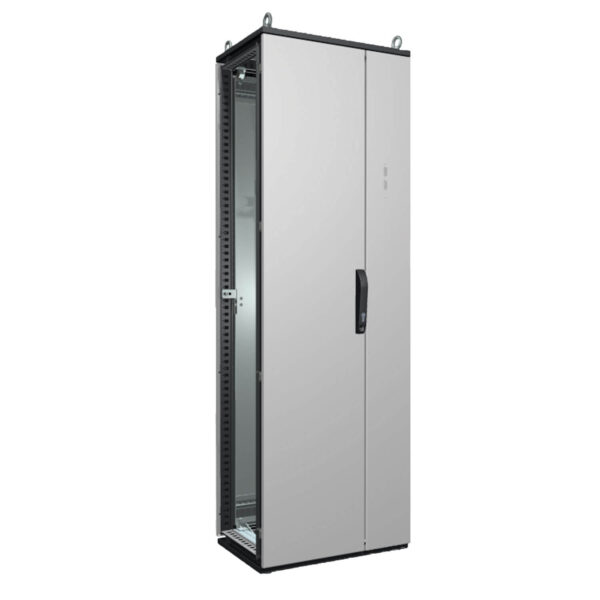

The 6500 MXU disconnect cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality, robotically poured in place gasket. The standard cabinet kits consist of:
NEMA/EEMAC 12-13 CSA Certified / UL Listed CE (IEC60529 / IP55)
– The standard cabinet kits consist of :
– 6500 MXDU solid disconnect doors, painted steel (light gray RAL 7035) consisting of :
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 6500 MXU160604 | N/A | N/A | N/A | 194 lbs | 2D PDF | 3D File |
| 6500 MXU160605 | N/A | N/A | N/A | 200 lbs | 2D PDF | 3D File |
| 6500 MXU160606 | N/A | N/A | N/A | 206 lbs | 2D PDF | 3D File |
| 6500 MXU160608 | N/A | N/A | N/A | 218 lbs | 2D PDF | 3D File |
| 6500 MXU160804 | N/A | N/A | N/A | 242 lbs | 2D PDF | 3D File |
| 6500 MXU160805 | N/A | N/A | N/A | 250 lbs | 2D PDF | 3D File |
| 6500 MXU160806 | N/A | N/A | N/A | 256 lbs | 2D PDF | 3D File |
| 6500 MXU160808 | N/A | N/A | N/A | 272 lbs | 2D PDF | 3D File |
| 6500 MXU181004 | N/A | N/A | N/A | 318 lbs | 2D PDF | 3D File |
| 6500 MXU181005 | N/A | N/A | N/A | 328 lbs | 2D PDF | 3D File |
| 6500 MXU181006 | N/A | N/A | N/A | 336 lbs | 2D PDF | 3D File |
| 6500 MXU181008 | N/A | N/A | N/A | 352 lbs | 2D PDF | 3D File |
| 6500 MXU180604 | N/A | N/A | N/A | 212 lbs | 2D PDF | 3D File |
| 6500 MXU180605 | N/A | N/A | N/A | 218 lbs | 2D PDF | 3D File |
| 6500 MXU180606 | N/A | N/A | N/A | 226 lbs | 2D PDF | 3D File |
| 6500 MXU180608 | N/A | N/A | N/A | 238 lbs | 2D PDF | 3D File |
| 6500 MXU180804 | N/A | N/A | N/A | 266 lbs | 2D PDF | 3D File |
| 6500 MXU180805 | N/A | N/A | N/A | 272 lbs | 2D PDF | 3D File |
| 6500 MXU180806 | N/A | N/A | N/A | 280 lbs | 2D PDF | 3D File |
| 6500 MXU180808 | N/A | N/A | N/A | 294 lbs | 2D PDF | 3D File |
| 6500 MXU201004 | N/A | N/A | N/A | 348 lbs | 2D PDF | 3D File |
| 6500 MXU201005 | N/A | N/A | N/A | 356 lbs | 2D PDF | 3D File |
| 6500 MXU201006 | N/A | N/A | N/A | 364 lbs | 2D PDF | 3D File |
| 6500 MXU201008 | N/A | N/A | N/A | 382 lbs | 2D PDF | 3D File |
| 6500 MXU200604 | N/A | N/A | N/A | 232 lbs | 2D PDF | 3D File |
| 6500 MXU200605 | N/A | N/A | N/A | 238 lbs | 2D PDF | 3D File |
| 6500 MXU200606 | N/A | N/A | N/A | 244 lbs | 2D PDF | 3D File |
| 6500 MXU200608 | N/A | N/A | N/A | 256 lbs | 2D PDF | 3D File |
| 6500 MXU200804 | N/A | N/A | N/A | 290 lbs | 2D PDF | 3D File |
| 6500 MXU200805 | N/A | N/A | N/A | 296 lbs | 2D PDF | 3D File |
| 6500 MXU200806 | N/A | N/A | N/A | 304 lbs | 2D PDF | 3D File |
| 6500 MXU200808 | N/A | N/A | N/A | 318 lbs | 2D PDF | 3D File |
| 6500 MXU200809 | N/A | N/A | N/A | 330 lbs | 2D PDF | 3D File |
