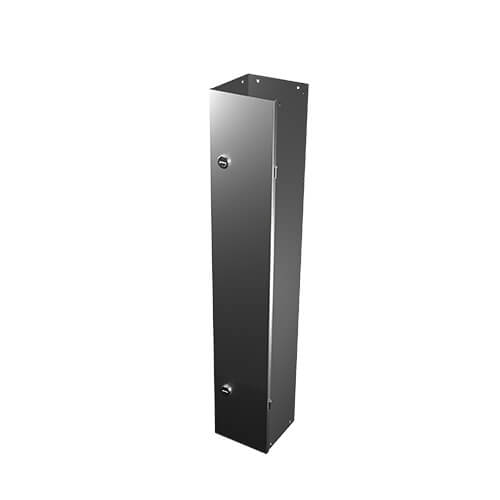

The 1100 series lay-in ducts are made of code gauge steel and designed to permit fast and easy installation of multiple wire runs. The corners of components are aesthetically rounded. The hinged covers are secured by convenient quarter-turn locks, which facilitate access to the contents of the components. Available without knockouts (add suffix “N” to the catalog number). Knockouts are provided on two sides of the body. All accessories for a complete system such as 22½°, 45° and 90° elbows, crosses, T’s, reducers, telescope fittings have removable covers. Joiner plates are linked by carriage bolts and anti-vibration nuts, which can be installed using minimum tooling. All of the painted components are finished with heat fused powder paint, electro-staticaly applied on a pretreated base. Finish is ANSI/ASA 61 smooth gray (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 SS8120SC | 81 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8048SC | 80 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8024SC | 80 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8036SC | 80 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6072SC | 60 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6120SC | 61 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8012SC | 80 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6048SC | 60 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6060SC | 60 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4120SC | 41 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12120SC | 121 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12060SC | 120 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12072SC | 120 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12036SC | 120 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12048SC | 120 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12012SC | 120 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12024SC | 120 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10072SC | 100 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10120SC | 101 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10048SC | 100 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10060SC | 100 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10024SC | 100 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10036SC | 100 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8060SC | 80 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8072SC | 80 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6012SC | 60 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6036SC | 60 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4060SC | 40 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4072SC | 40 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4036SC | 40 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4048SC | 40 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4012SC | 40 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4024SC | 40 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2072SC | 20 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2120SC | 21 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2048SC | 20 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2060SC | 20 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2024SC | 20 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2036SC | 20 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2012SC | 20 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2012 | 20 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2120 | 21 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2024 | 20 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2036 | 20 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2048 | 20 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2060 | 20 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS2072 | 20 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4012 | 40 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4120 | 41 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4024 | 40 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4036 | 40 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4048 | 40 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4060 | 40 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS4072 | 40 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6012 | 60 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6120 | 61 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6024 | 60 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6036 | 60 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6048 | 60 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6060 | 60 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS6072 | 60 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8012 | 80 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8120 | 81 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8024 | 80 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8036 | 80 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8048 | 80 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8060 | 80 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS8072 | 80 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10012 | 100 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10120 | 101 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10024 | 100 | 24 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10036 | 100 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10048 | 100 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10060 | 100 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS10072 | 100 | 72 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12012 | 120 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12120 | 121 | 20 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12024 | 120 | 12 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12036 | 120 | 36 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12048 | 120 | 48 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12060 | 120 | 60 | 0 | N/A | 2D PDF | 3D File |
| 1100 SS12072 | 120 | 72 | 0 | N/A | 2D PDF | 3D File |
