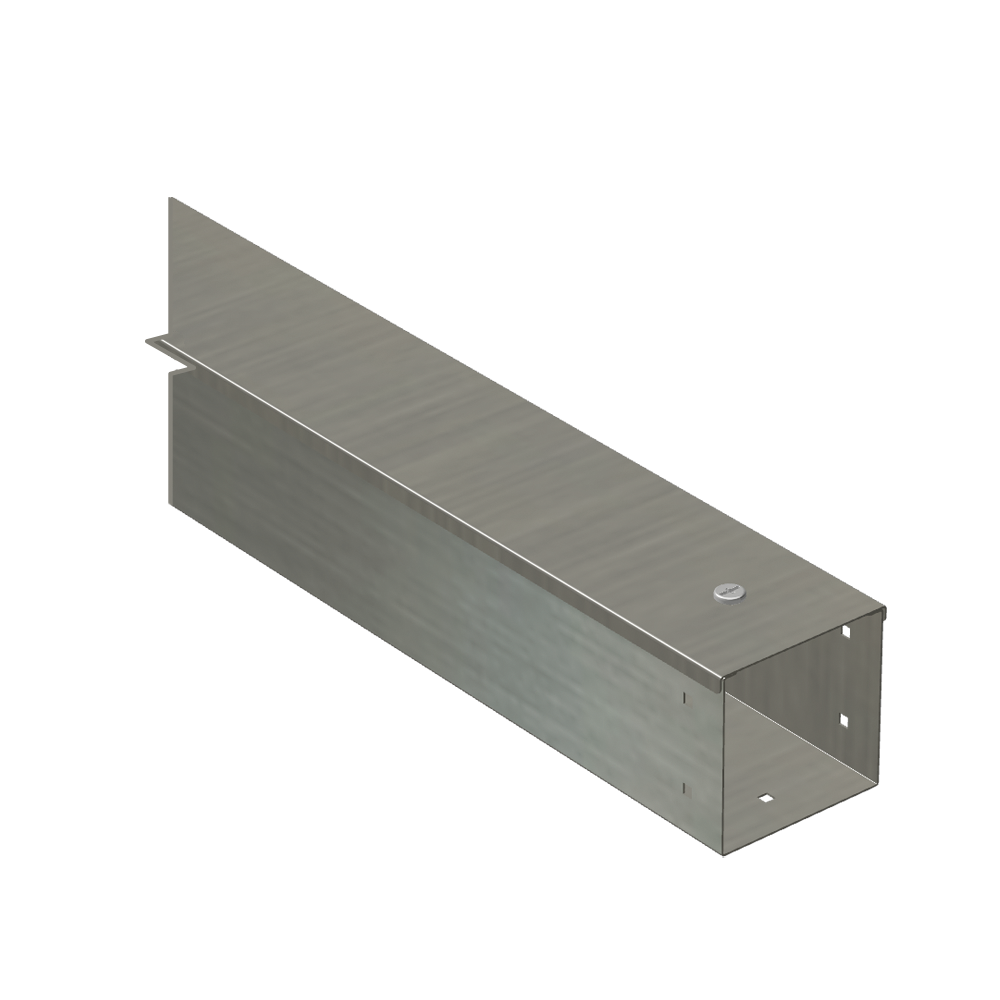

The 1150 series lay-in ducts are made of high quality code gauge stainless steel, and are designed to permit fast and easy installation of multiple wire runs. The covers are secured by quarter-turn latches. All accessories for a complete system, such as 45° and 90° elbows, offsets, T’s, and reducers, have removable covers. Joiner are linked by carriage bolts and anti-vibration nuts which can be installed using minimum tooling. All of the components are unpainted and brushed smooth #4.
UL Listed NEMA/EEMAC 1 / IP30

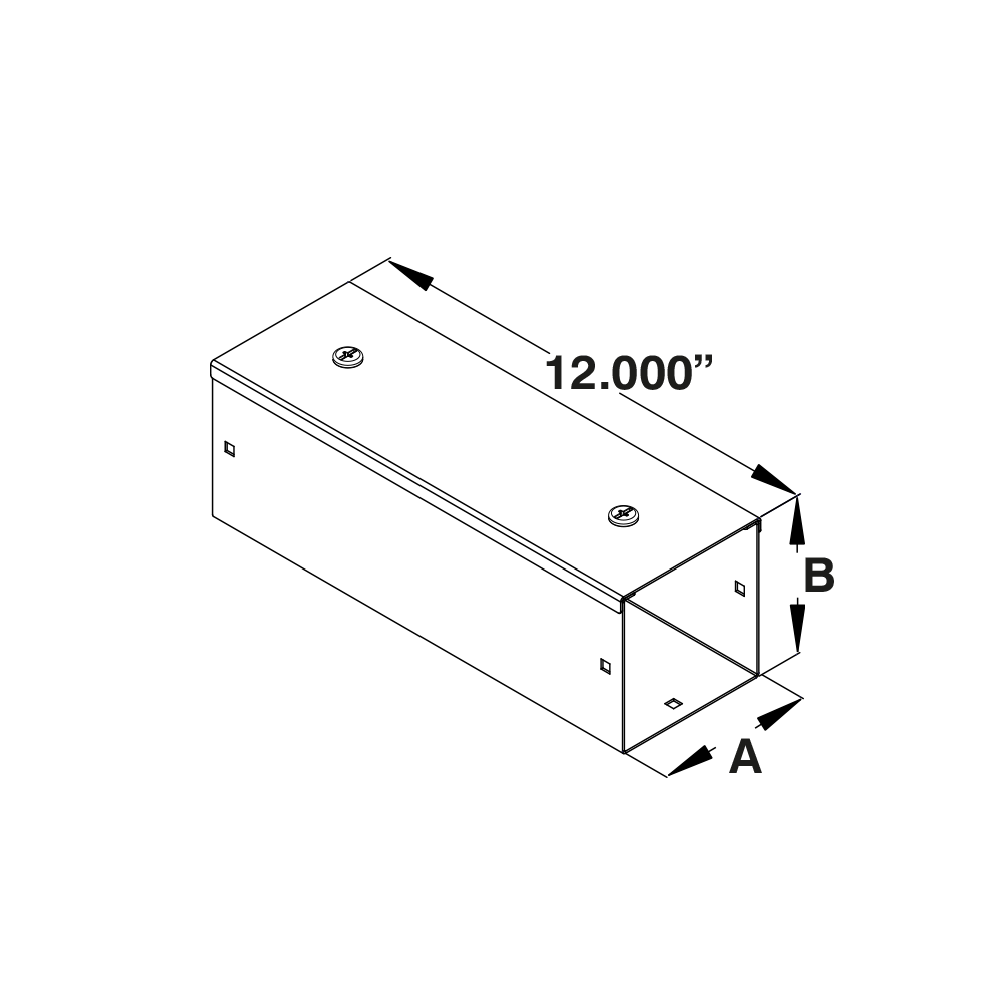

| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1150 SSC20 | 2 | 2 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC60P | 6 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC46P | 4 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC40P | 4 | 4 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC20P | 2 | 2 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC40 | 4 | 4 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC46 | 4 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 SSC60 | 6 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
