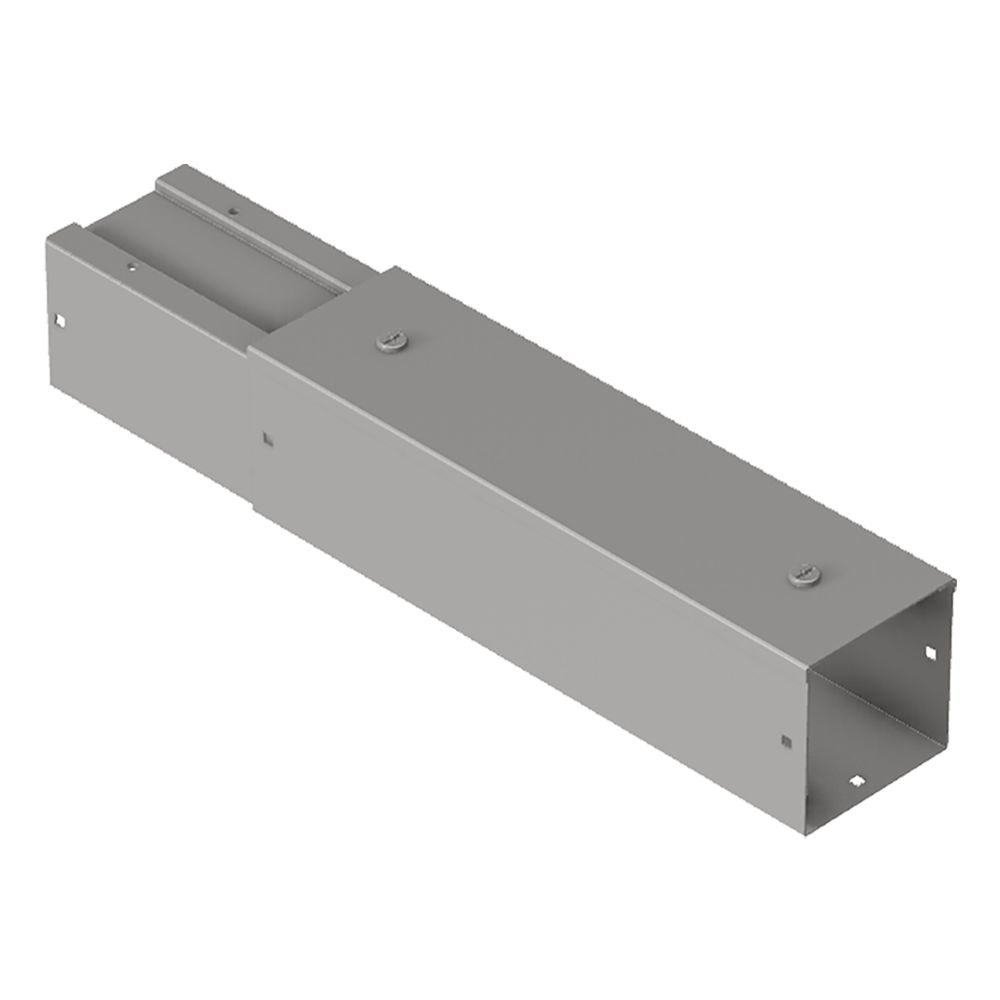

The 1150 series lay-in ducts are made of high quality code gauge stainless steel, and are designed to permit fast and easy installation of multiple wire runs. The covers are secured by quarter-turn latches. All accessories for a complete system, such as 45° and 90° elbows, offsets, T’s, and reducers, have removable covers. Joiner are linked by carriage bolts and anti-vibration nuts which can be installed using minimum tooling. All of the components are unpainted and brushed smooth #4.
UL Listed NEMA/EEMAC 1 / IP30
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|

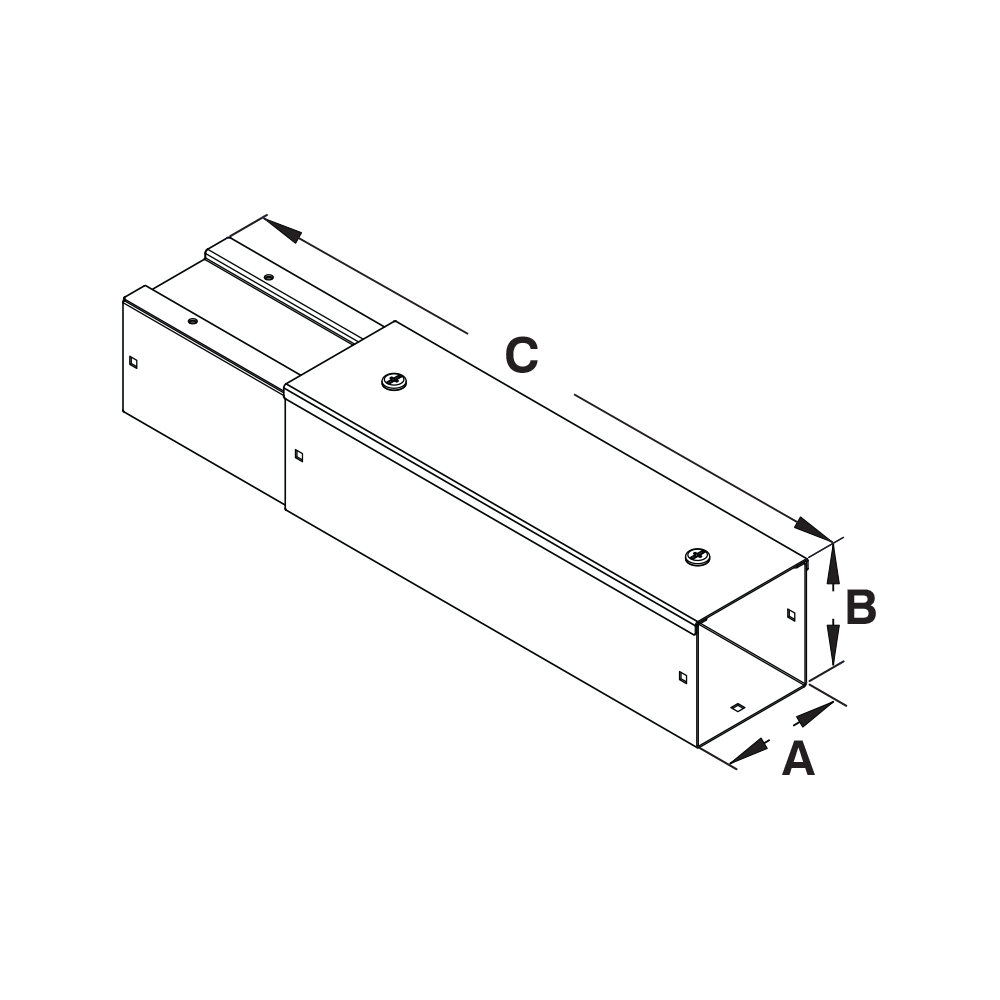

| A | B | C | |||
| 1150 TL2068 | 2 | 2 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 TL4068 | 4 | 4 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 TL4668 | 4 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
| 1150 TL6068 | 6 | 6 | N/A | N/A | PDF 2D | Fichier 3D |
