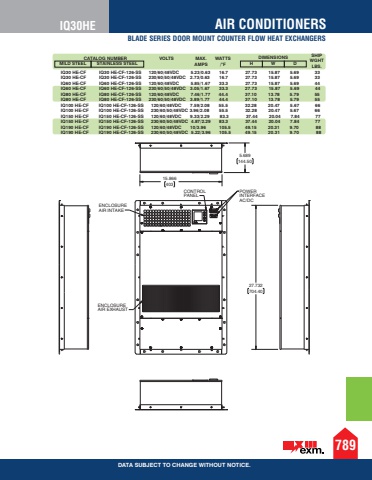

789DATA SUBJECT TO CHANGE WITHOUT NOTICE.AIR CONDITIONERSBLADE SERIES DOOR MOUNT COUNTER FLOW HEAT EXCHANGERSIQ30HEH W DDIMENSIONSMILD STEEL STAINLESS STEELCATALOG NUMBER VOLTS MAX. AMPSWATTS /%u00b0FIQ30 HE-CF IQ30 HE-CF-126-SS 120/60/48VDC 5.23/0.63 16.7 27.73 15.87 5.69 33 IQ30 HE-CF IQ30 HE-CF-126-SS 230/60/50/48VDC 2.73/0.63 16.7 27.73 15.87 5.69 33 IQ60 HE-CF IQ60 HE-CF-126-SS 120/60/48VDC 5.85/1.67 33.3 27.73 15.87 5.69 44 IQ60 HE-CF IQ60 HE-CF-126-SS 230/60/50/48VDC 3.05/1.67 33.3 27.73 15.87 5.69 44 IQ80 HE-CF IQ80 HE-CF-126-SS 120/60/48VDC 7.46/1.77 44.4 37.10 13.78 5.79 55 IQ80 HE-CF IQ80 HE-CF-126-SS 230/60/50/48VDC 3.89/1.77 44.4 37.10 13.78 5.79 55 IQ100 HE-CF IQ100 HE-CF-126-SS 120/60/48VDC 7.59/2.08 55.5 32.28 20.47 5.67 66 IQ100 HE-CF IQ100 HE-CF-126-SS 230/60/50/48VDC 3.96/2.08 55.5 32.28 20.47 5.67 66IQ150 HE-CF IQ150 HE-CF-126-SS 120/60/48VDC 9.33/2.29 83.3 37.44 20.04 7.84 77 IQ150 HE-CF IQ150 HE-CF-126-SS 230/60/50/48VDC 4.87/2.29 83.3 37.44 20.04 7.84 77 IQ190 HE-CF IQ190 HE-CF-126-SS 120/60/48VDC 10/3.96 105.5 49.15 20.31 9.70 88IQ190 HE-CF IQ190 HE-CF-126-SS 230/60/50/48VDC 5.22/3.96 105.5 49.15 20.31 9.70 88 2 27.73704.40 9 5.68144.50 6 15.86403ENCLOSUREAIR EXHAUSTENCLOSUREAIR INTAKECONTROLPANELPOWERINTERFACEAC/DCSHIP WGHT LBS.
