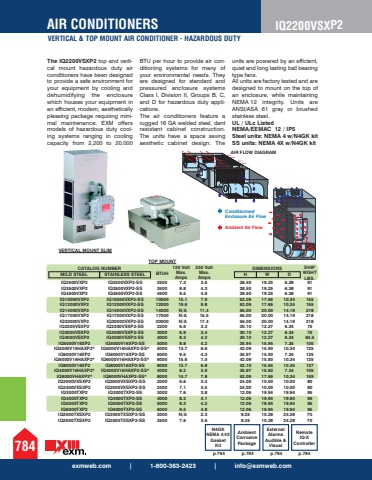

exmweb.com | 1-800-363-2423 | [email protected] CONDITIONERSVERTICAL & TOP MOUNT AIR CONDITIONER - HAZARDOUS DUTY784IQ2200VSXP2The IQ2200VSXP2 top and vertical mount hazardous duty air conditioners have been designed to provide a safe environment for your equipment by cooling and dehumidifying the enclosure which houses your equipment in an efficient, modern, aesthetically pleasing package requiring minimal maintenance. EXM offers models of hazardous duty cooling systems ranging in cooling capacity from 2,200 to 20,000 BTU per hour to provide air conditioning systems for many of your environmental needs. They are designed for standard and pressured enclosure systems Class I, Division II, Groups B, C, and D for hazardous duty applications. The air conditioners feature a rugged 16 GA welded steel, dent resistant cabinet construction. The units have a space saving aesthetic cabinet design. The units are powered by an efficient, quiet and long lasting ball bearing type fans. All units are factory tested and are designed to mount on the top of an enclosure, while maintaining NEMA 12 integrity. Units are ANSI/ASA 61 gray or brushed stainless steel. UL / ULc Listed NEMA/EEMAC 12 / IP5 Steel units: NEMA 4 w/N4GK kit SS units: NEMA 4X w/N4GK kitp.794 p.794 p.794 p.794N4GK NEMA 4/4X Gasket KitAmbient Corrosive PackageExternal Alarms Audible & VisualRemote IQ-X ControllerTOP MOUNTVERTICAL MOUNT SLIMAIR FLOW DIAGRAM%uf0c5 Conditionned Enclosure Air Flow %uf0c5 Ambient Air Flow H W DDIMENSIONS SHIP WGHT LBS.MILD STEEL STAINLESS STEELCATALOG NUMBERBTUH120 Volt Max. Amps230 Volt Max. AmpsIQ2500VXP2 IQ2500VXP2-SS 2500 7.3 3.5 28.50 19.25 6.38 91 IQ3500VXP2 IQ3500VXP2-SS 3500 8.8 4.3 28.50 19.25 6.38 91 IQ4500VXP2 IQ4500VXP2-SS 4500 9.5 4.6 28.50 19.25 6.38 91 IQ10000VXP2 IQ10000VXP2-SS 10000 15.1 7.9 52.09 17.65 10.34 155 IQ12000VXP2 IQ12000VXP2-SS 12000 19.6 9.8 52.09 17.65 10.34 155 IQ14000VXP2 IQ14000VXP2-SS 14000 N/A 11.4 56.00 20.00 14.19 218 IQ17000VXP2 IQ17000VXP2-SS 17000 N/A 15.5 56.00 20.00 14.19 218 IQ20000VXP2 IQ20000VXP2-SS 20000 N/A 17.4 56.00 20.00 14.19 218 IQ2200VSXP2 IQ2200VSXP2-SS 2200 6.6 3.3 30.10 12.27 6.34 75 IQ3000VSXP2 IQ3000VSXP2-SS 3000 6.9 3.4 30.10 12.27 6.34 75 IQ4000VSXP2 IQ4000VSXP2-SS 4000 8.3 4.2 30.10 12.27 6.34 84.5 IQ5000V16XP2 IQ5000V16XP2-SS 5000 8.8 4.2 35.94 15.94 7.35 105 IQ5000V16HAXP2* IQ5000V16HAXP2-SS* 5000 13.7 6.6 42.09 15.93 10.34 125 IQ6000V16XP2 IQ6000V16XP2-SS 6000 9.5 4.3 35.97 15.93 7.34 125 IQ6000V16HAXP2* IQ6000V16HAXP2-SS* 6000 15.6 7.0 42.09 15.93 10.34 125 IQ8000V16XP2 IQ8000V16XP2-SS 8000 13.7 6.8 42.10 15.94 10.35 137 IQ4000V16HAXP2* IQ4000V16HAXP2-SS* 4000 8.2 3.9 35.97 15.93 7.34 105 IQ8000VHAXP2* IQ8000VHAXP2-SS* 8000 14.7 7.8 52.09 17.65 10.34 159 IQ2000VXSXP2 IQ2000VXSXP2-SS 2000 6.6 3.4 24.00 10.00 10.00 80 IQ2400VXSXP2 IQ2400VXSXP2-SS 2400 7.1 3.5 24.00 10.00 10.00 80 IQ3000TXP2 IQ3000TXP2-SS 3000 7.6 3.8 12.06 19.94 19.94 95 IQ4000TXP2 IQ4000TXP2-SS 4000 8.2 4.1 12.06 19.94 19.94 95 IQ5000TXP2 IQ5000TXP2-SS 5000 8.3 4.2 12.06 19.94 19.94 95 IQ6000TXP2 IQ6000TXP2-SS 6000 9.5 4.8 12.06 19.94 19.94 95 IQ2000TXSXP2 IQ2000TXSXP2-SS 2000 N/A 2.3 9.25 10.28 24.28 70 IQ2500TXSXP2 IQ2500TXSXP2-SS 2500 7.6 3.6 9.25 10.28 24.28 70
