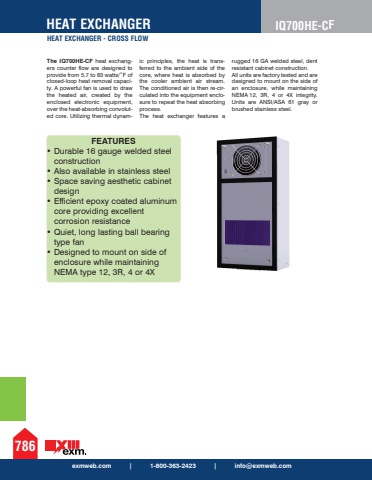

exmweb.com | 1-800-363-2423 | [email protected] EXCHANGERHEAT EXCHANGER - CROSS FLOW786IQ700HE-CFFEATURES%u2022 Durable 16 gauge welded steel construction %u2022 Also available in stainless steel %u2022 Space saving aesthetic cabinet design %u2022 Efficient epoxy coated aluminum core providing excellent corrosion resistance %u2022 Quiet, long lasting ball bearing type fan %u2022 Designed to mount on side of enclosure while maintaining NEMA type 12, 3R, 4 or 4X The IQ700HE-CF heat exchangers counter flow are designed to provide from 5.7 to 83 watts/%u02daF of closed-loop heat removal capacity. A powerful fan is used to draw the heated air, created by the enclosed electronic equipment, over the heat-absorbing convoluted core. Utilizing thermal dynamic principles, the heat is transferred to the ambient side of the core, where heat is absorbed by the cooler ambient air stream. The conditioned air is then re-circulated into the equipment enclosure to repeat the heat absorbing process. The heat exchanger features a rugged 16 GA welded steel, dent resistant cabinet construction. All units are factory tested and are designed to mount on the side of an enclosure, while maintaining NEMA 12, 3R, 4 or 4X integrity. Units are ANSI/ASA 61 gray or brushed stainless steel.
