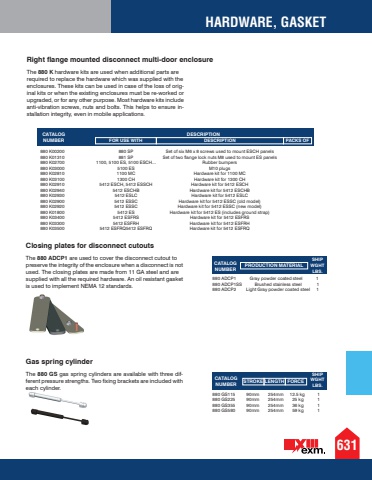

Closing plates for disconnect cutoutsThe 880 ADCP1 are used to cover the disconnect cutout to preserve the integrity of the enclosure when a disconnect is not used. The closing plates are made from 11 GA steel and are supplied with all the required hardware. An oil resistant gasket is used to implement NEMA 12 standards.Right flange mounted disconnect multi-door enclosureThe 880 K hardware kits are used when additional parts are required to replace the hardware which was supplied with the enclosures. These kits can be used in case of the loss of original kits or when the existing enclosures must be re-worked or upgraded, or for any other purpose. Most hardware kits include anti-vibration screws, nuts and bolts. This helps to ensure installation integrity, even in mobile applications.631HARDWARE, GASKET880 K00200 880 K01310 880 K02700 880 K03000 880 K02810 880 K03100 880 K02910 880 K02940 880 K02930 880 K02900 880 K02920 880 K01800 880 K03400 880 K03300 880 K03500 CATALOG NUMBER FOR USE WITH DESCRIPTION PACKS OFDESCRIPTIONSTROKE LENGTH FORCECATALOG NUMBER880 ADCP1 Gray powder coated steel 1 880 ADCP1SS Brushed stainless steel 1 880 ADCP2 Light Gray powder coated steel 1SHIP WGHT LBS.PRODUCTION MATERIALCATALOG NUMBER880 GS115 90mm 254mm 12.5 kg 1 880 GS225 90mm 254mm 25 kg 1 880 GS355 90mm 254mm 36 kg 1 880 GS580 90mm 254mm 59 kg 1SHIP WGHT LBS.Gas spring cylinderThe 880 GS gas spring cylinders are available with three different pressure strengths. Two fixing brackets are included with each cylinder.880 SP 881 SP 1100, 5100 ES, 5100 ESCH... 5100 ES 1100 MC 1300 CH 5412 ESCH, 5412 ESSCH 5412 ESCHB 5412 ESLC 5412 ESSC 5412 ESSC 5412 ES 5412 ESFRS 5412 ESFRH 5412 ESFRQ5412 ESFRQSet of six M6 x 8 screws used to mount ESCH panels Set of two flange lock nuts M8 used to mount ES panels Rubber bumpers M10 plugs Hardware kit for 1100 MC Hardware kit for 1300 CH Hardware kit for 5412 ESCH Hardware kit for 5412 ESCHB Hardware kit for 5412 ESLC Hardware kit for 5412 ESSC (old model) Hardware kit for 5412 ESSC (new model) Hardware kit for 5412 ES (includes ground strap) Hardware kit for 5412 ESFRS Hardware kit for 5412 ESFRH Hardware kit for 5412 ESFRQ
