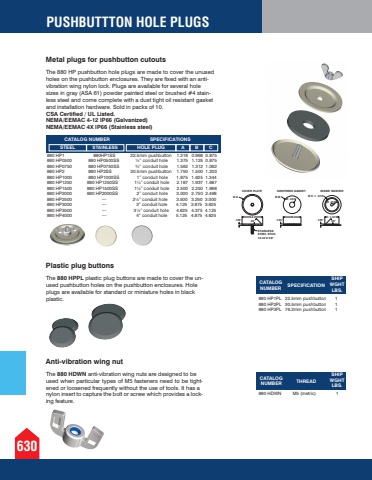

Metal plugs for pushbutton cutoutsThe 880 HP pushbutton hole plugs are made to cover the unused holes on the pushbutton enclosures. They are fixed with an antivibration wing nylon lock. Plugs are available for several hole sizes in gray (ASA 61) powder painted steel or brushed #4 stainless steel and come complete with a dust tight oil resistant gasket and installation hardware. Sold in packs of 10.CSA Certified / UL Listed. NEMA/EEMAC 4-12 IP66 (Galvanized) NEMA/EEMAC 4X IP66 (Stainless steel)Plastic plug buttonsThe 880 HPPL plastic plug buttons are made to cover the unused pushbutton holes on the pushbutton enclosures. Hole plugs are available for standard or miniature holes in blackplastic.PUSHBUTTTON HOLE PLUGS630CATALOG NUMBER880 HP1 880HP1SS 22.5mm pushbutton 1.218 0.968 0.875 880 HP0500 880 HP0500SS %u00bd%u201d conduit hole 1.375 1.125 0.875 880 HP0750 880 HP0750SS %u00be%u201d conduit hole 1.562 1.312 1.062 880 HP2 880 HP2SS 30.5mm pushbutton 1.750 1.500 1.203 880 HP1000 880 HP1000SS 1%u201d conduit hole 1.875 1.625 1.344 880 HP1250 880 HP1250SS 1%u00bc%u201d conduit hole 2.187 1.937 1.687 880 HP1500 880 HP1500SS 1%u00bd%u201d conduit hole 2.500 2.250 1.968 880 HP2000 880 HP2000SS 2%u201d conduit hole 3.000 2.750 2.468 880 HP2500 --- 2%u00bd%u201d conduit hole 3.500 3.250 3.000 880 HP3000 --- 3%u201d conduit hole 4.125 3.875 3.625 880 HP3500 --- 3%u00bd%u201d conduit hole 4.625 4.375 4.125 880 HP4000 --- 4%u201d conduit hole 5.125 4.875 4.625CATALOG NUMBER880 HP1PL 22.5mm pushbutton 1 880 HP2PL 30.5mm pushbutton 1 880 HP3PL 76.2mm pushbutton 1SPECIFICATIONSHIP WGHT LBS.Anti-vibration wing nutThe 880 HDWN anti-vibration wing nuts are designed to be used when particular types of M5 fasteners need to be tightened or loosened frequently without the use of tools. It has a nylon insert to capture the bolt or screw which provides a locking feature.CATALOG NUMBER880 HDWN M5 (metric) 1THREADSHIP WGHT LBS.STEEL STAINLESS HOLE PLUG A B CSPECIFICATIONS%u00d8 A %u00d8 B %u00d8 C %u00b1 .010%u201d.125%u201dC %u00b1.010%u201d%u00d8 .218%u201d %u00d8 .437%u201d45%u00b0 .125%u201d 45%u00b0A B.125%u201dSTAINLESSSTEEL STUD10-32 X 5/8%u201dCOVER PLATE NEOPRENE GASKET INSIDE WASHER
