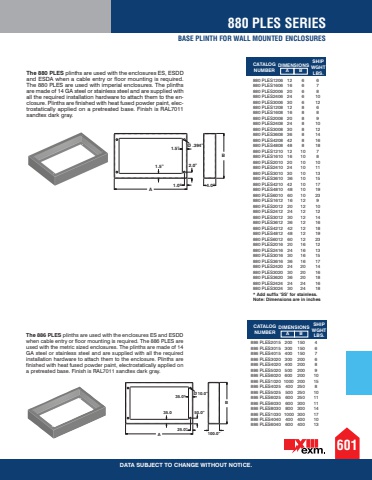

880 PLESA2.0%u201d1.0%u201d1.5%u201d1.5%u201d4.0%u201dB%u00d8 .394%u201d601880 PLES SERIESDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 880 PLES plinths are used with the enclosures ES, ESDD and ESDA when a cable entry or floor mounting is required. The 880 PLES are used with imperial enclosures. The plinths are made of 14 GA steel or stainless steel and are supplied with all the required installation hardware to attach them to the enclosure. Plinths are finished with heat fused powder paint, electrostatically applied on a pretreated base. Finish is RAL7011 sandtex dark gray. 880 PLES1206 12 6 6 880 PLES1606 16 6 7 880 PLES2006 20 6 8 880 PLES2406 24 6 10 880 PLES3006 30 6 12 880 PLES1208 12 8 6 880 PLES1608 16 8 8 880 PLES2008 20 8 9 880 PLES2408 24 8 10 880 PLES3008 30 8 12 880 PLES3608 36 8 14 880 PLES4208 42 8 16880 PLES4808 48 8 18 880 PLES1210 12 10 7 880 PLES1610 16 10 8 880 PLES2010 20 10 10 880 PLES2410 24 10 11 880 PLES3010 30 10 13 880 PLES3610 36 10 15 880 PLES4210 42 10 17 880 PLES4810 48 10 19 880 PLES6010 60 10 23 880 PLES1612 16 12 9 880 PLES2012 20 12 10 880 PLES2412 24 12 12 880 PLES3012 30 12 14 880 PLES3612 36 12 16 880 PLES4212 42 12 18 880 PLES4812 48 12 19 880 PLES6012 60 12 23 880 PLES2016 20 16 12 880 PLES2416 24 16 13 880 PLES3016 30 16 15 880 PLES3616 36 16 17 880 PLES2420 24 20 14 880 PLES3020 30 20 16 880 PLES3620 36 20 18 880 PLES2424 24 24 16 880 PLES3024 30 24 18 * Add suffix %u2018SS%u2019 for stainless. Note: Dimensions are in inchesThe 886 PLES plinths are used with the enclosures ES and ESDD when cable entry or floor mounting is required. The 886 PLES are used with the metric sized enclosures. The plinths are made of 14 GA steel or stainless steel and are supplied with all the required installation hardware to attach them to the enclosure. Plinths are finished with heat fused powder paint, electrostatically applied on a pretreated base. Finish is RAL7011 sandtex dark gray.CATALOG NUMBER886 PLES2015 200 150 4 886 PLES3015 300 150 6 886 PLES4015 400 150 7 886 PLES3020 300 200 6 886 PLES4020 400 200 8 886 PLES5020 500 200 9 886 PLES6020 600 200 10 886 PLES1020 1000 200 15 886 PLES4025 400 250 8 886 PLES5025 500 250 10 886 PLES6025 600 250 11 886 PLES6030 600 300 11 886 PLES8030 800 300 14 886 PLES1030 1000 300 17 886 PLES4040 400 400 10 886 PLES6040 600 400 13 A BDIMENSIONSA50.0%u201d25.0%u201d35.035. 10.0%u201d 0%u201d100.0%u201dB%u00d8SHIP WGHT LBS.CATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS. BASE PLINTH FOR WALL MOUNTED ENCLOSURES
