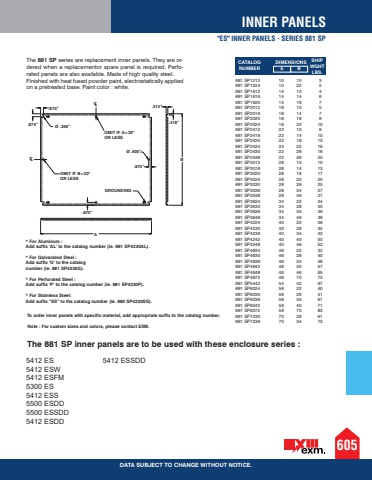

INNER PANELS\ INNER PANELS - SERIES 881 SP.875%u201d.875%u201d%u00d8 .500%u201dLCLCGROUNDING%u00d8 .390%u201d.875%u201d.875%u201d .418%u201d.512%u201dBAOMIT IF A=30%u201dOR LESSOMIT IF B=30%u201dOR LESSTo order inner panels with specific material, add appropriate suffix to the catalog number.605* For Aluminum : Add suffix %u2018AL%u2019 to the catalog number (ie. 881 SP4230AL). * For Galvanized Steel : Add suffix %u2018G%u2019 to the catalog number (ie. 881 SP4230G). * For Perforated Steel : Add suffix %u2018P%u2019 to the catalog number (ie. 881 SP4230P). * For Stainless Steel: Add suffix %u201cSS%u201d to the catalog number (ie. 880 SP4230SS).Note : For custom sizes and colors, please contact EXM.The 881 SP series are replacement inner panels. They are ordered when a replacementor spare panel is required. Perforated panels are also available. Made of high quality steel. Finished with heat fused powder paint, electrostatically applied on a pretreated base. Paint color : white.881 SP1212 10 10 3 881 SP1224 10 22 5 881 SP1612 14 10 4 881 SP1616 14 14 6 881 SP1620 14 18 7 881 SP2012 18 10 5 881 SP2016 18 14 7 881 SP2020 18 18 9 881 SP2024 18 22 10 881 SP2412 22 10 8 881 SP2416 22 14 10 881 SP2420 22 18 13 881 SP2424 22 22 16 881 SP2430 22 28 18 881 SP2448 22 46 20 881 SP3012 28 10 10 881 SP3016 28 14 13 881 SP3020 28 18 17 881 SP3024 28 22 20 881 SP3030 28 28 25 881 SP3036 28 34 27 881 SP3048 28 46 27 881 SP3624 34 22 24 881 SP3630 34 28 30 881 SP3636 34 34 36 881 SP3648 34 46 39 881 SP4224 40 22 28 881 SP4230 40 28 35 881 SP4236 40 34 43 881 SP4242 40 40 50 881 SP4248 40 46 52 881 SP4824 46 22 32 881 SP4830 46 28 40 881 SP4836 46 34 49 881 SP4842 46 40 57 881 SP4848 46 46 65 881 SP4872 46 70 73 881 SP5442 54 42 67 881 SP6024 58 22 40 881 SP6030 58 28 51 881 SP6036 58 34 61 881 SP6042 58 40 71 881 SP6072 58 70 83 881 SP7230 70 28 61 881 SP7236 70 34 73The 881 SP inner panels are to be used with these enclosure series :5412 ES 5412 ESW 5412 ESFM 5300 ES 5412 ESS 5500 ESDD 5500 ESSDD 5412 ESDD 5412 ESSDDCATALOG NUMBERSHIP WGHT LBS.DATA SUBJECT TO CHANGE WITHOUT NOTICE.A BDIMENSIONS
