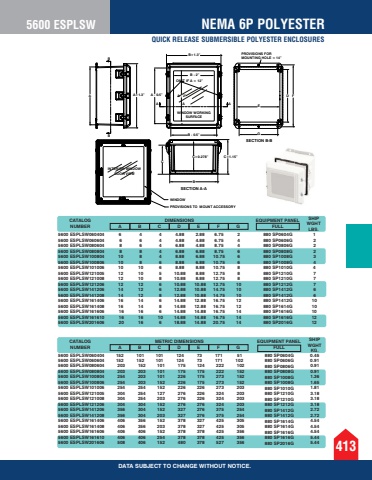

QUICK RELEASE SUBMERSIBLE POLYESTER ENCLOSURES5600 ESPLSW NEMA 6P POLYESTER413DATA SUBJECT TO CHANGE WITHOUT NOTICE.A ABBSECTION A-ASECTION B-BPROVISIONS FOR MOUNTING HOLE < 14%u201dA A+1.3%u201dB+1.3%u201dB - 0.5%u201dD FGEBC+1.15%u201dA - 0.5%u201dC+0.278%u201dCINTERIOR WINDOWDOOR VIEWB - 2%u201dWINDOW WORKINGSURFACEOMIT IF A < 12%u201dAA - 2%u201dWINDOWPROVISIONS TO MOUNT ACCESSORYCATALOG NUMBER A B C D E F GMETRIC DIMENSIONS SHIP WGHT KG.CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5600 ESPLSW060404 6 4 4 4.88 2.88 6.75 2 1 5600 ESPLSW060604 6 6 4 4.88 4.88 6.75 4 25600 ESPLSW080604 8 6 4 6.88 4.88 8.75 4 2 5600 ESPLSW080804 8 8 4 6.88 6.88 8.75 6 2 5600 ESPLSW100804 10 8 4 8.88 6.88 10.75 6 3 5600 ESPLSW100806 10 8 6 8.88 6.88 10.75 6 4 5600 ESPLSW101006 10 10 6 8.88 8.88 10.75 8 4 5600 ESPLSW121005 12 10 5 10.88 8.88 12.75 8 7 5600 ESPLSW121008 12 10 8 10.88 8.88 12.75 8 7 5600 ESPLSW121206 12 12 6 10.88 10.88 12.75 10 7 5600 ESPLSW141206 14 12 6 12.88 10.88 14.75 10 6 5600 ESPLSW141208 14 12 8 12.88 10.88 14.75 10 6 5600 ESPLSW161406 16 14 6 14.88 12.88 16.75 12 10 5600 ESPLSW161408 16 14 8 14.88 12.88 16.75 12 10 5600 ESPLSW161606 16 16 6 14.88 14.88 16.75 14 10 5600 ESPLSW161610 16 16 10 14.88 14.88 16.75 14 12 5600 ESPLSW201606 20 16 6 18.88 14.88 20.75 14 12 5600 ESPLSW060404 152 101 101 124 73 171 51 0.45 5600 ESPLSW060604 152 152 101 124 73 171 102 0.91 5600 ESPLSW080604 203 152 101 175 124 222 102 0.915600 ESPLSW080804 203 203 101 175 175 222 152 0.915600 ESPLSW100804 254 203 101 226 175 273 152 1.36 5600 ESPLSW100806 254 203 152 226 175 273 152 1.655600 ESPLSW101006 254 254 152 226 226 273 203 1.815600 ESPLSW121005 304 254 127 276 226 324 203 3.18 5600 ESPLSW121008 304 254 203 276 226 324 203 3.18 5600 ESPLSW121206 304 304 152 276 276 324 203 3.185600 ESPLSW141206 356 304 152 327 276 375 254 2.72 5600 ESPLSW141208 356 304 203 327 276 375 254 2.725600 ESPLSW161406 406 356 152 378 327 425 305 4.54 5600 ESPLSW161408 406 356 203 378 327 425 305 4.545600 ESPLSW161606 406 406 152 378 378 425 356 4.54 5600 ESPLSW161610 406 406 254 378 378 425 356 5.44 5600 ESPLSW201606 508 406 152 480 378 527 356 5.44FULLEQUIPMENT PANEL880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016GFULLEQUIPMENT PANEL880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016G
