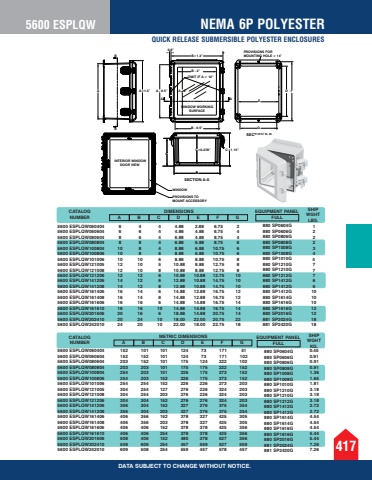

QUICK RELEASE SUBMERSIBLE POLYESTER ENCLOSURES5600 ESPLQW NEMA 6P POLYESTER417DATA SUBJECT TO CHANGE WITHOUT NOTICE.BC+1.15%u201dCBBA AB - 2%u201dINTERIOR WINDOWDOOR VIEW PROVISIONS TO MOUNT ACCESSORY WINDOWSECTION A-ASECTION B-BOMIT IF A < 12%u201dWINDOW WORKINGSURFACEA A+1.3%u201dB+1.3%u201d0.8%u201dB - 0.5%u201dD FGEBA - 0.5%u201d A - 2%u201dCPROVISIONS FOR MOUNTING HOLE < 14%u201dC+0.278%u201dCATALOG NUMBER A B C D E F GMETRIC DIMENSIONS SHIP WGHT KG.CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5600 ESPLQW060404 6 4 4 4.88 2.88 6.75 2 1 5600 ESPLQW060604 6 6 4 4.88 4.88 6.75 4 2 5600 ESPLQW080604 8 6 4 6.88 4.88 8.75 4 2 5600 ESPLQW080804 8 8 4 6.88 6.88 8.75 6 2 5600 ESPLQW100804 10 8 4 8.88 6.88 10.75 6 3 5600 ESPLQW100806 10 8 6 8.88 6.88 10.75 6 4 5600 ESPLQW101006 10 10 6 8.88 8.88 10.75 8 4 5600 ESPLQW121005 12 10 5 10.88 8.88 12.75 8 7 5600 ESPLQW121008 12 10 8 10.88 8.88 12.75 8 7 5600 ESPLQW121206 12 12 6 10.88 10.88 12.75 10 7 5600 ESPLQW141206 14 12 6 12.88 10.88 14.75 10 6 5600 ESPLQW141208 14 12 8 12.88 10.88 14.75 10 6 5600 ESPLQW161406 16 14 6 14.88 12.88 16.75 12 10 5600 ESPLQW161408 16 14 8 14.88 12.88 16.75 12 10 5600 ESPLQW161606 16 16 6 14.88 14.88 16.75 14 10 5600 ESPLQW161610 16 16 10 14.88 14.88 16.75 14 12 5600 ESPLQW201606 20 16 6 18.88 14.88 20.75 14 12 5600 ESPLQW202410 20 24 10 18.00 22.00 20.75 22 18 5600 ESPLQW242010 24 20 10 22.00 18.00 22.75 18 18 5600 ESPLQW060404 152 101 101 124 73 171 51 0.45 5600 ESPLQW060604 152 152 101 124 73 171 102 0.91 5600 ESPLQW080604 203 152 101 175 124 222 102 0.91 5600 ESPLQW080804 203 203 101 175 175 222 152 0.91 5600 ESPLQW100804 254 203 101 226 175 273 152 1.36 5600 ESPLQW100806 254 203 152 226 175 273 152 1.65 5600 ESPLQW101006 254 254 152 226 226 273 203 1.81 5600 ESPLQW121005 304 254 127 276 226 324 203 3.18 5600 ESPLQW121008 304 254 203 276 226 324 203 3.18 5600 ESPLQW121206 304 304 152 276 276 324 203 3.18 5600 ESPLQW141206 356 304 152 327 276 375 254 2.72 5600 ESPLQW141208 356 304 203 327 276 375 254 2.72 5600 ESPLQW161406 406 356 152 378 327 425 305 4.54 5600 ESPLQW161408 406 356 203 378 327 425 305 4.54 5600 ESPLQW161606 406 406 152 378 378 425 356 4.54 5600 ESPLQW161610 406 406 254 378 378 425 356 5.44 5600 ESPLQW201606 508 406 152 480 378 527 356 5.44 5600 ESPLQW202410 508 609 254 457 559 527 559 7.26 5600 ESPLQW242010 609 508 254 559 457 578 457 7.26FULLEQUIPMENT PANELFULLEQUIPMENT PANEL880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016G 881 SP2024G 881 SP2420G880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016G 881 SP2024G 881 SP2420G
