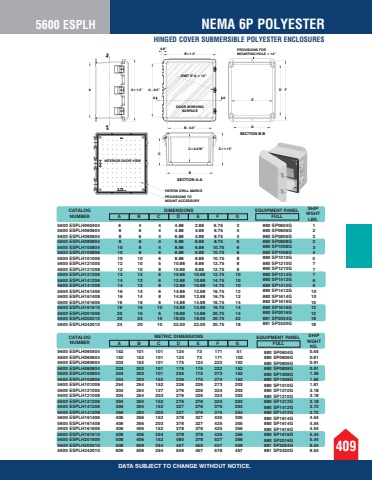

5600 ESPLH NEMA 6P POLYESTER409DATA SUBJECT TO CHANGE WITHOUT NOTICE.BBA AINTERIOR DOOR VIEW PROVISIONS TO MOUNT ACCESSORY PATERN DRILL MARKSSECTION A-ASECTION B-BOMIT IF A < 12%u201dDOOR WORKINGSURFACEA A+1.3%u201dB+1.3%u201d0.8%u201dB - 0.5%u201dD FGEBC+1.15%u201dA - 0.5%u201dCPROVISIONS FOR MOUNTING HOLE < 14%u201dC+0.278%u201dCATALOG NUMBER A B C D E F GMETRIC DIMENSIONS SHIP WGHT KG.CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5600 ESPLH060404 6 4 4 4.88 2.88 6.75 2 1 5600 ESPLH060604 6 6 4 4.88 4.88 6.75 4 2 5600 ESPLH080604 8 6 4 6.88 4.88 8.75 4 2 5600 ESPLH080804 8 8 4 6.88 6.88 8.75 6 2 5600 ESPLH100804 10 8 4 8.88 6.88 10.75 6 3 5600 ESPLH100806 10 8 6 8.88 6.88 10.75 6 4 5600 ESPLH101006 10 10 6 8.88 8.88 10.75 8 4 5600 ESPLH121005 12 10 5 10.88 8.88 12.75 8 7 5600 ESPLH121008 12 10 8 10.88 8.88 12.75 8 7 5600 ESPLH121206 12 12 6 10.88 10.88 12.75 10 7 5600 ESPLH141206 14 12 6 12.88 10.88 14.75 10 6 5600 ESPLH141208 14 12 8 12.88 10.88 14.75 10 6 5600 ESPLH161406 16 14 6 14.88 12.88 16.75 12 10 5600 ESPLH161408 16 14 8 14.88 12.88 16.75 12 10 5600 ESPLH161606 16 16 6 14.88 14.88 16.75 14 10 5600 ESPLH161610 16 16 10 14.88 14.88 16.75 14 12 5600 ESPLH201606 20 16 6 18.88 14.88 20.75 14 12 5600 ESPLH202410 20 24 10 18.00 18.00 20.75 22 18 5600 ESPLH242010 24 20 10 22.00 22.00 20.75 18 185600 ESPLH060404 152 101 101 124 73 171 51 0.45 5600 ESPLH060604 152 152 101 124 73 171 102 0.91 5600 ESPLH080604 203 152 101 175 124 222 102 0.91 5600 ESPLH080804 203 203 101 175 175 222 152 0.91 5600 ESPLH100804 254 203 101 226 175 273 152 1.36 5600 ESPLH100806 254 203 152 226 175 273 152 1.65 5600 ESPLH101006 254 254 152 226 226 273 203 1.81 5600 ESPLH121005 304 254 127 276 226 324 203 3.18 5600 ESPLH121008 304 254 203 276 226 324 203 3.18 5600 ESPLH121206 304 304 152 276 276 324 203 3.18 5600 ESPLH141206 356 304 152 327 276 375 254 2.72 5600 ESPLH141208 356 304 203 327 276 375 254 2.72 5600 ESPLH161406 406 356 152 378 327 425 305 4.54 5600 ESPLH161408 406 356 203 378 327 425 305 4.54 5600 ESPLH161606 406 406 152 378 378 425 356 4.54 5600 ESPLH161610 406 406 254 378 378 425 356 5.44 5600 ESPLH201606 508 406 152 480 378 527 356 5.44 5600 ESPLH202410 508 609 254 457 559 527 559 8.54 5600 ESPLH242010 609 508 254 559 457 578 457 8.54FULLEQUIPMENT PANEL880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016G 881 SP2024G 881 SP2420GFULLEQUIPMENT PANEL880 SP0604G 880 SP0606G 880 SP0806G 880 SP0808G 880 SP1008G 880 SP1008G 880 SP1010G 880 SP1210G 880 SP1210G 880 SP1212G 880 SP1412G 880 SP1412G 880 SP1614G 880 SP1614G 880 SP1616G 880 SP1616G 880 SP2016G 881 SP2024G 881 SP2420GHINGED COVER SUBMERSIBLE POLYESTER ENCLOSURES
